Product Description
- Exceptional Control for Your Brushless Motors

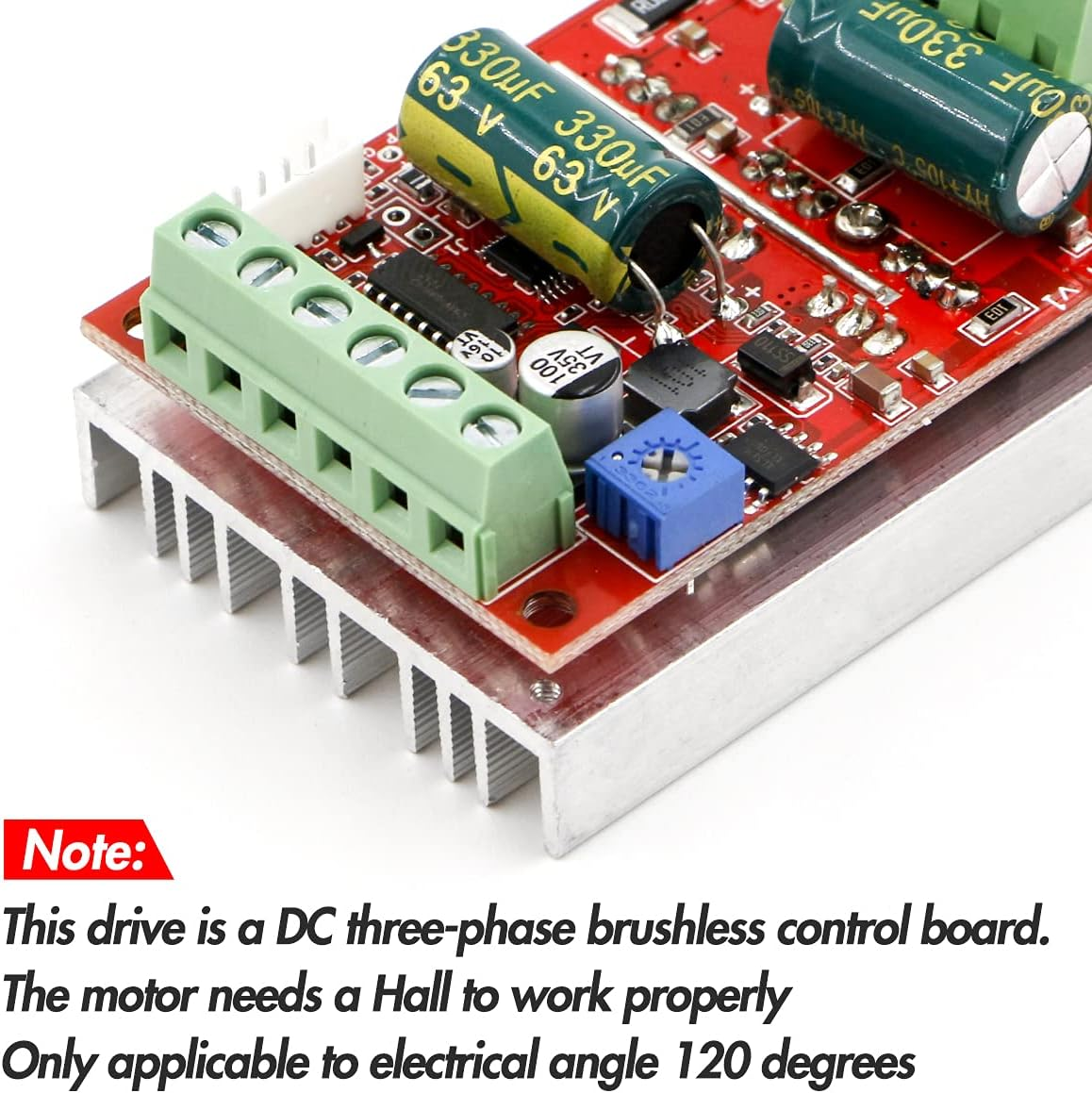

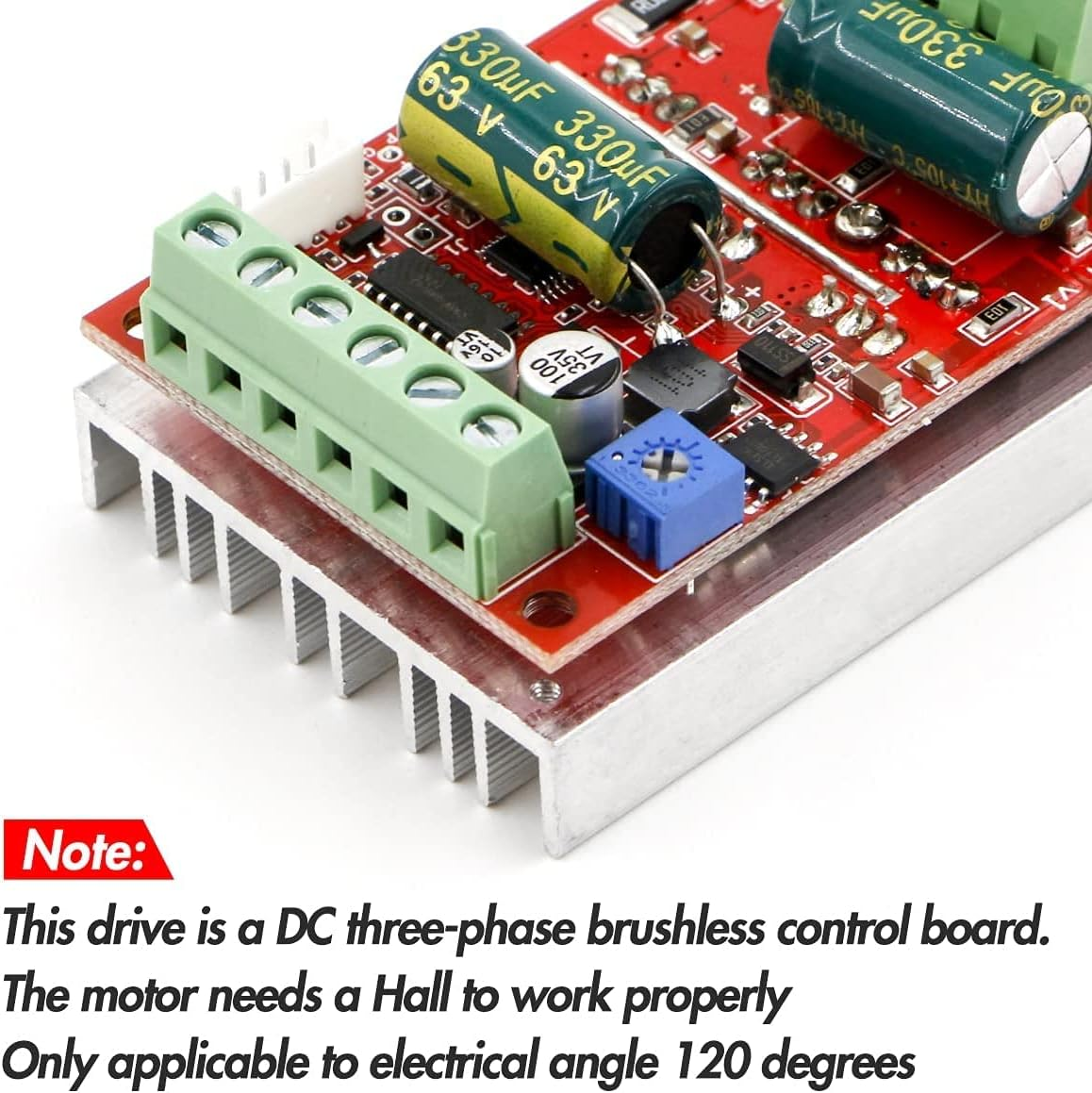

- Riorand’s 350W 6-60V 3-Phase PWM DC Brushless Motor Speed Controller is engineered for precision and versatility, making it the perfect choice for 120° electric angle brushless DC motors equipped with Hall sensors. Designed for DIY robotics, electric tools, and PLC systems, this controller delivers robust performance and reliability.
- Advanced Speed Control Options

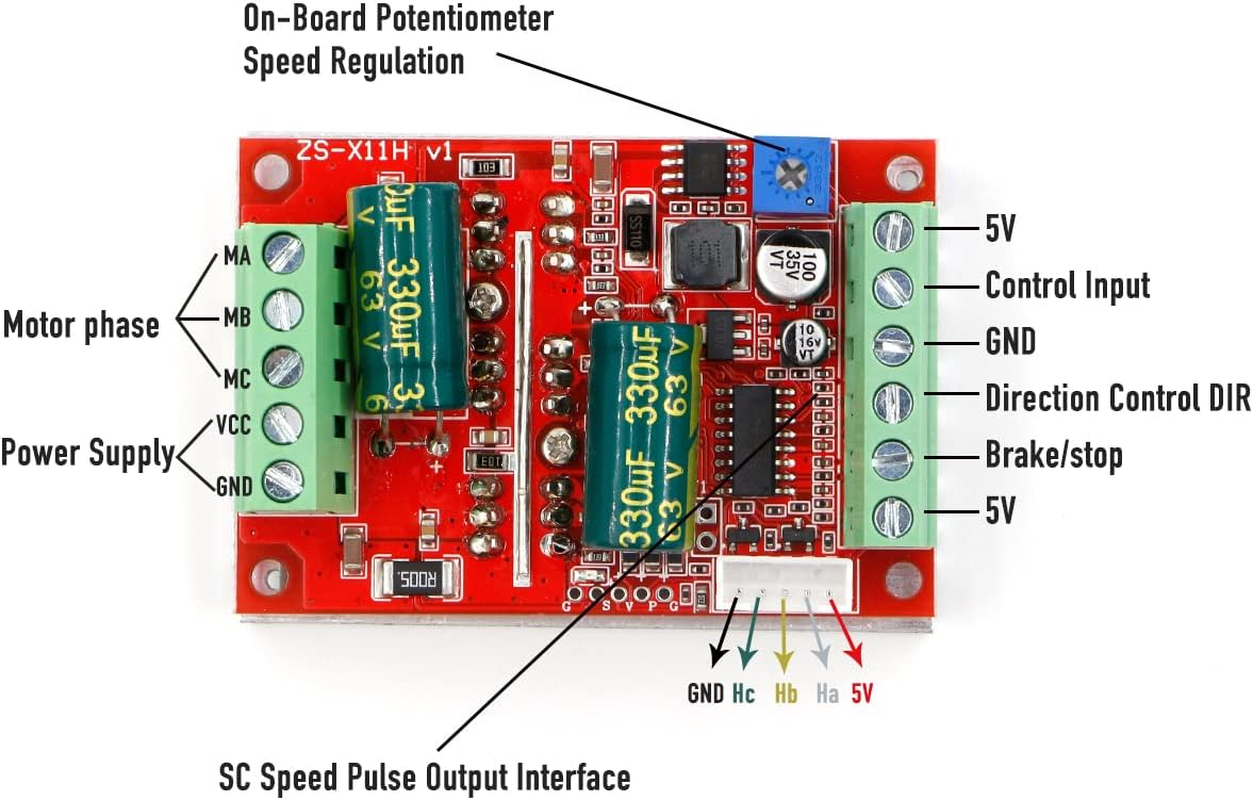

- With multiple control methods, you can easily adjust the speed using the on-board potentiometer, external 0-5V analog input, external potentiometer, or PWM signals. The controller supports a range of applications, ensuring seamless integration into your projects.

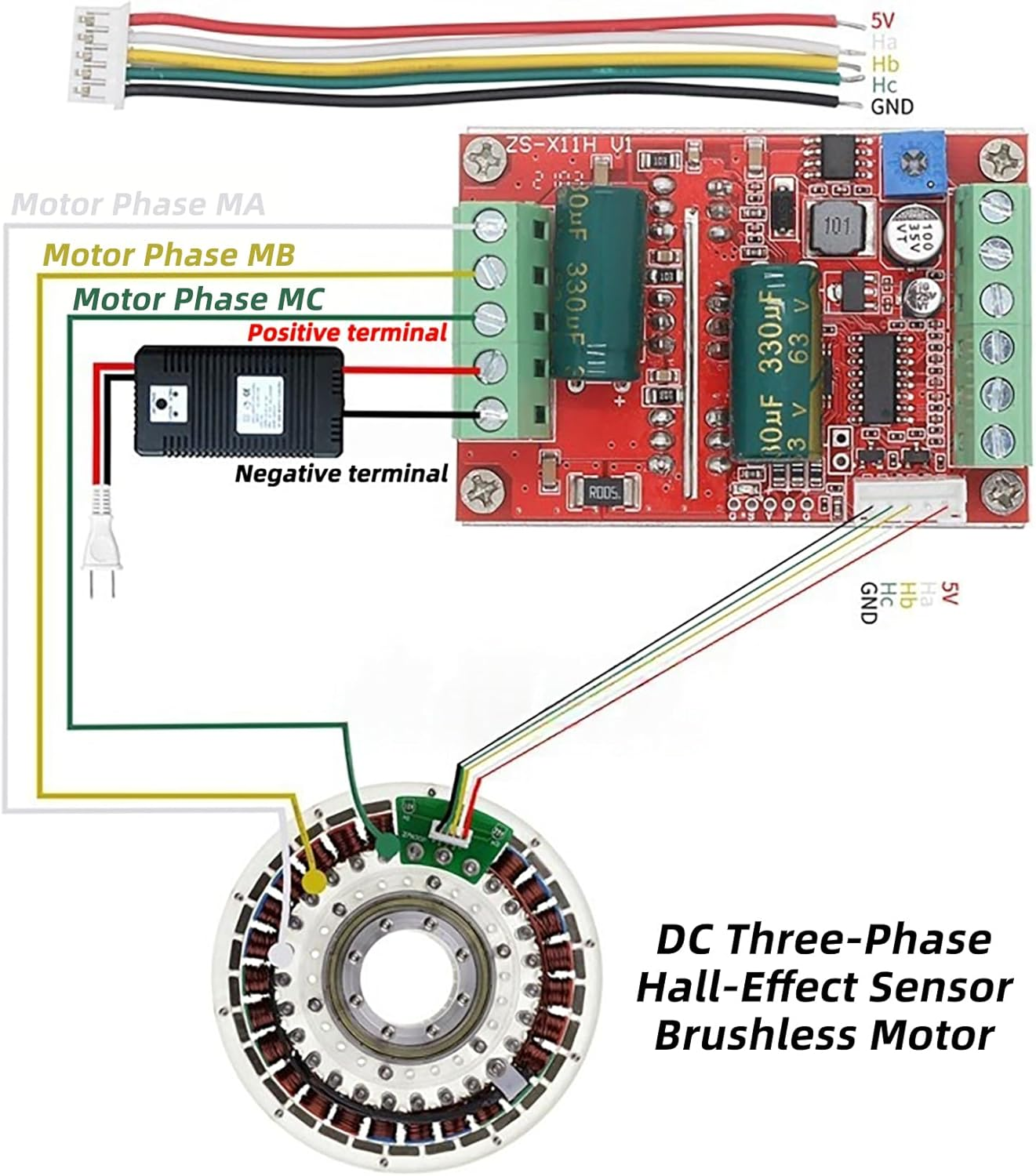

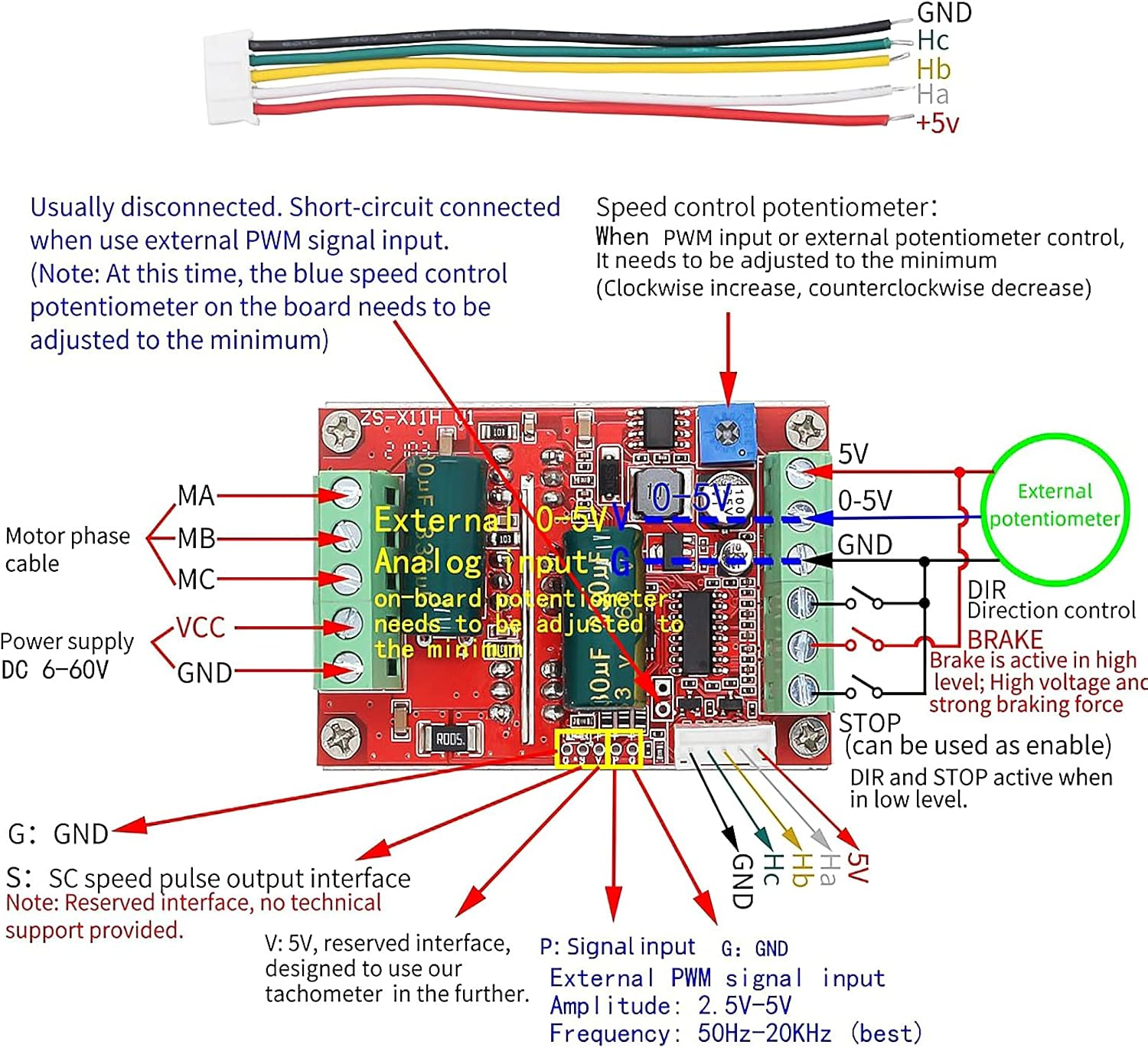

- Comprehensive Wiring and Setup Guidance
- Wiring is made straightforward with terminal block interfaces for easy connections. The controller features clear instructions for Hall wire connection, phase wire connection, and troubleshooting mismatches to ensure your motor operates smoothly from the start.
- Safety Features for Peace of Mind

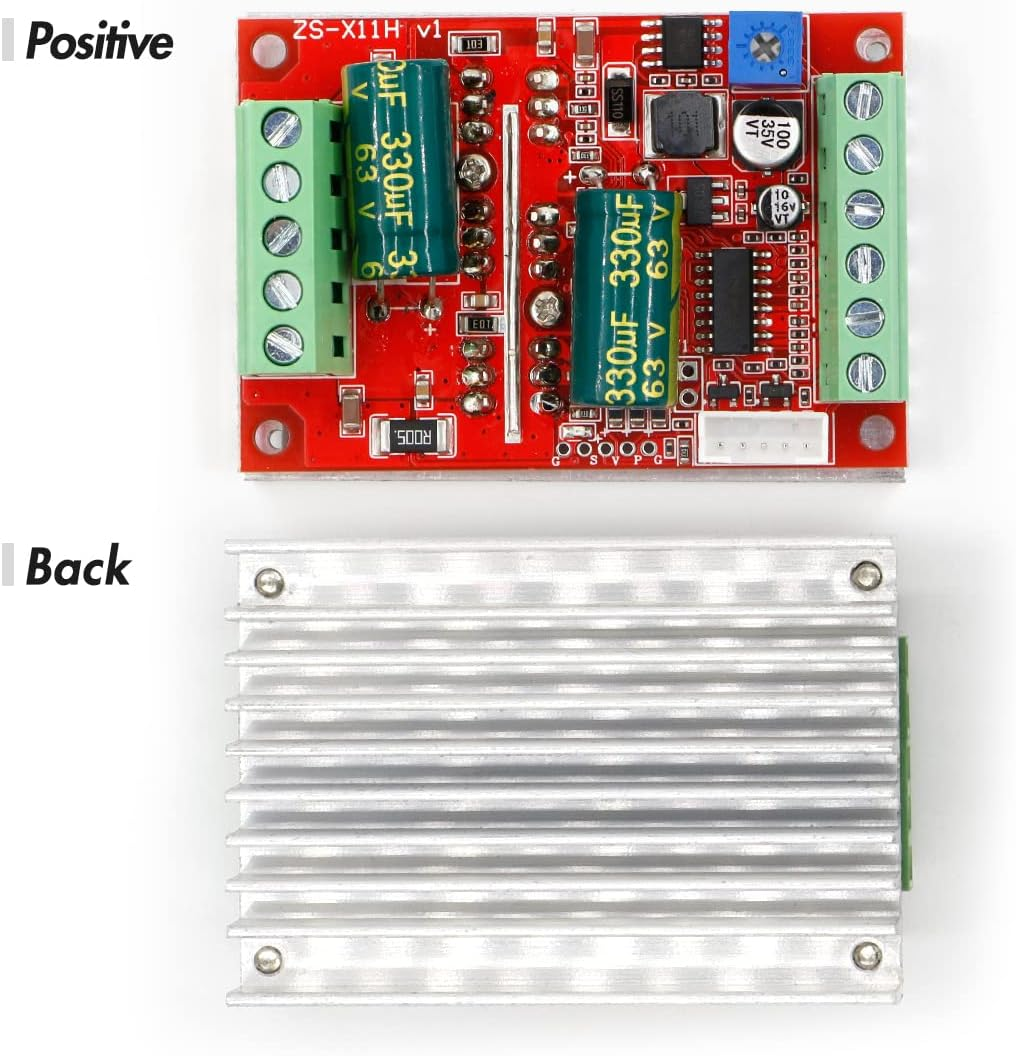

- Built-in overcurrent protection safeguards the motor output, while a standard heat sink ensures stable heat dissipation during operation. It is crucial to use external fusing as the main power circuit does not include a fuse, and reversing DC power polarity can lead to permanent damage.
- Wide Application Range
- This versatile controller is suitable for a variety of projects including DIY robotics, model vehicles, small electric tools such as mini drills and grinders, industrial automation systems like conveyors and lab mixers, and fluid equipment including brushless water pumps and fans.
- Specifications You Can Trust

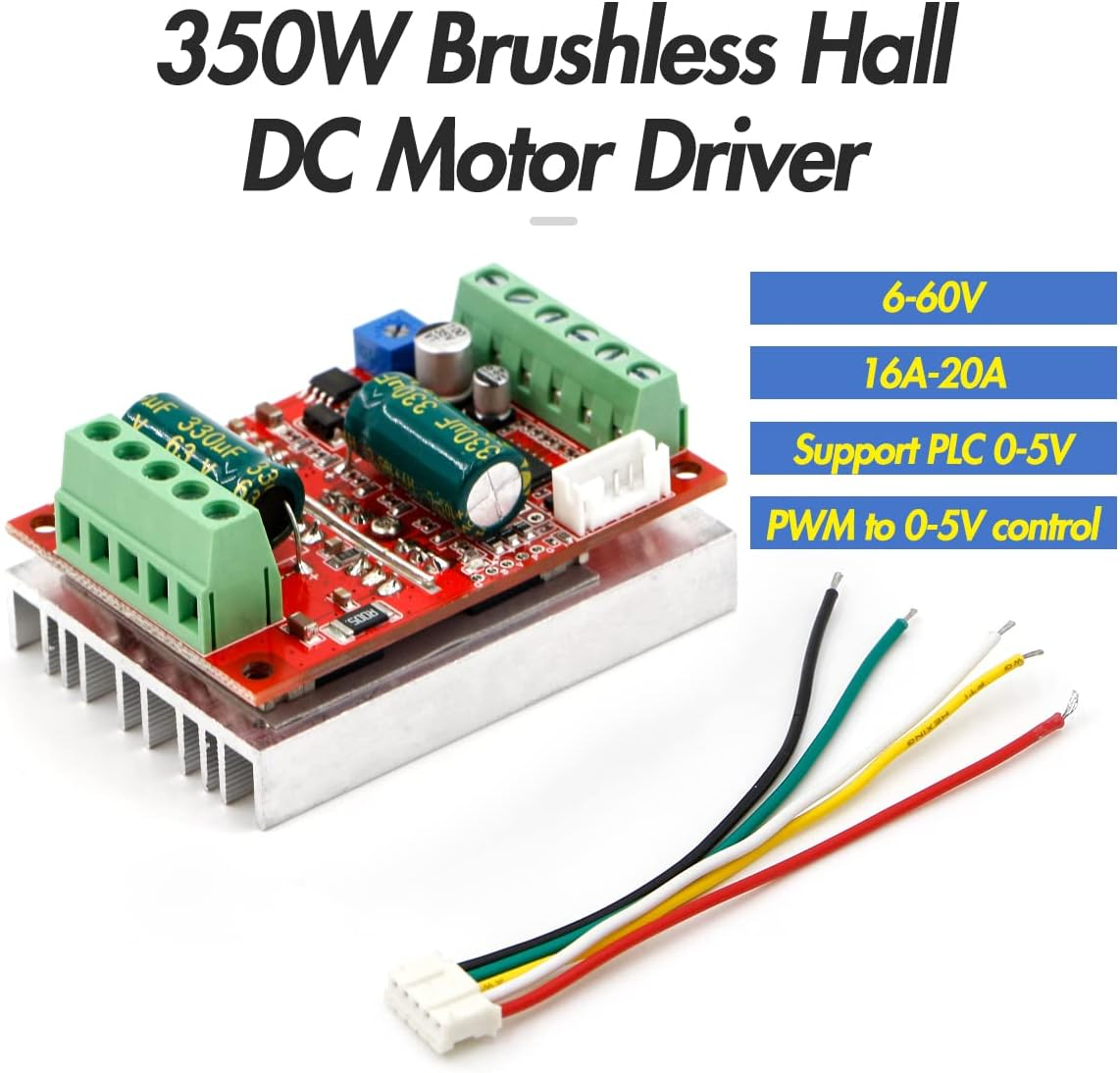

- Operating voltage: 6-60V DC, rated power: 200-300W (350W peak), with a maximum output of 16A continuous (20A peak). This high-performance controller is designed to meet the demands of modern applications while ensuring efficiency and reliability.
- Easy to Use and Troubleshoot
- For initial testing, it is recommended to operate at low voltage (7-12V) and low current (1-3A) to validate wiring. If issues arise such as motor jitters or fails to start, simply adjust the sequence of the 3 phase wires to find the correct configuration for smooth operation.
- Join the Future of Automation
- Upgrade your projects with the Riorand 350W 3-Phase PWM DC Brushless Motor Speed Controller. Experience the difference in performance, control, and reliability for all your brushless motor applications.
