Nilight Red LED Toggle Switch with Safety Cover
ON OFF Toggle Switch with Safety Cover
Nilight Red LED Toggle Switch

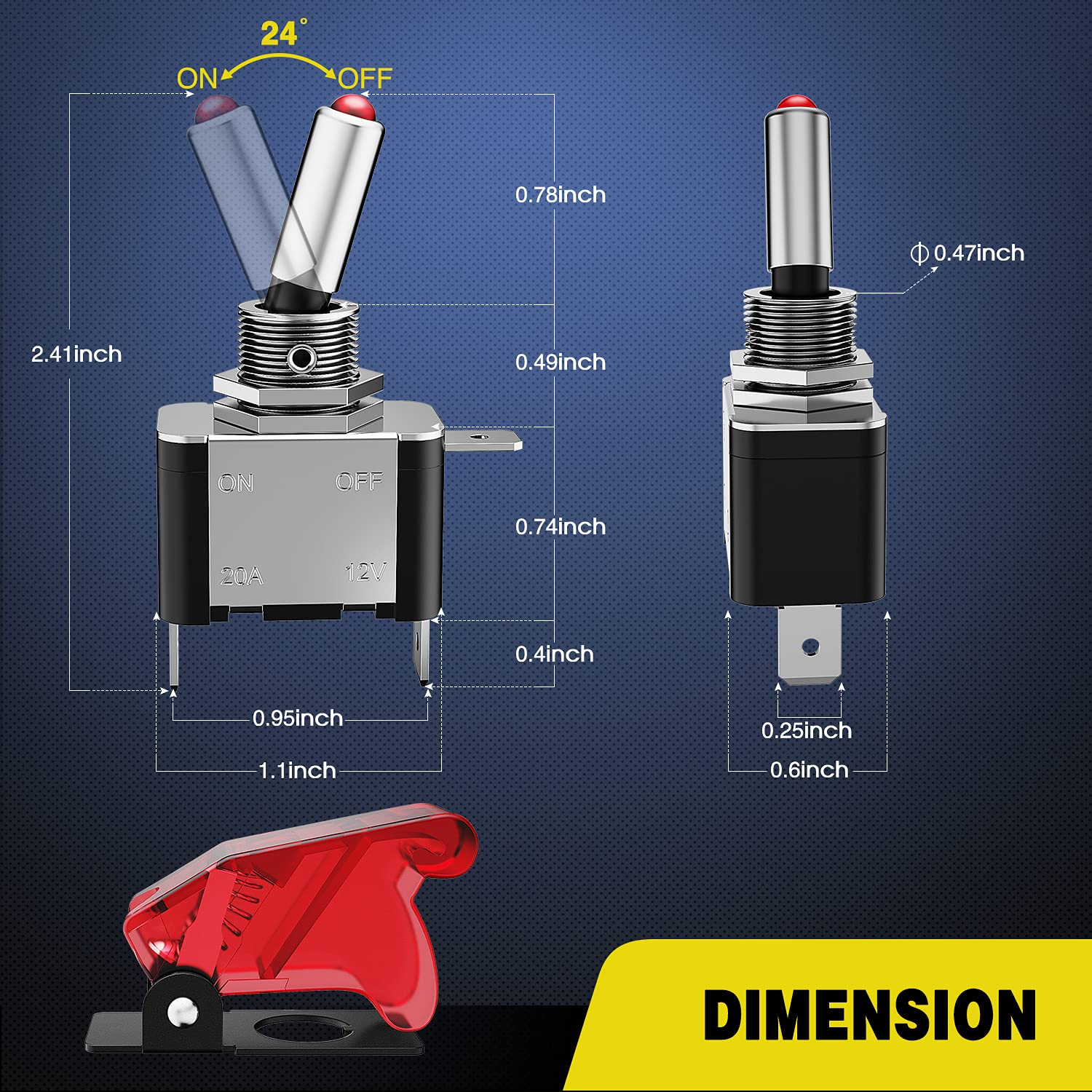

- Insert switches into 0.47″ (12mm) mounting hole, place cover on top, and tighten the top hex nut
- Adjust the bottom hex nut to leave ample space between the switch body and the cover.
- An open cover allows the switch to be flipped ON. Closing the cover forces the switch to the original OFF position. A spring-loaded mechanism holds the covers in either open or closed positions until a force is applied.
- Connect load, power source, and ground to terminals.
| Rating | 20A 12VDC |
| LED Color | Red |
| Operating Temperature | -25℃ ~ +85℃ |
| Panel Cut-Out Size | 12mm |
| Electrical Life | 10,000 Cycles |
| Dielectric Strength | 1 Minute 1500V AC |
| Contact R | 50mΩ max |
| Connector Type | Blade type connector |
Features
ON/OFF Toggle Switch
When you toggle the switch on, LEDs on and the accessory is on. When you flip the switch cover, LEDs off, accessory is off.
Safety Cover
Transparent blue “aircraft” style safety cover prevents accidental start. Cover it when not in use. Safe and secure.

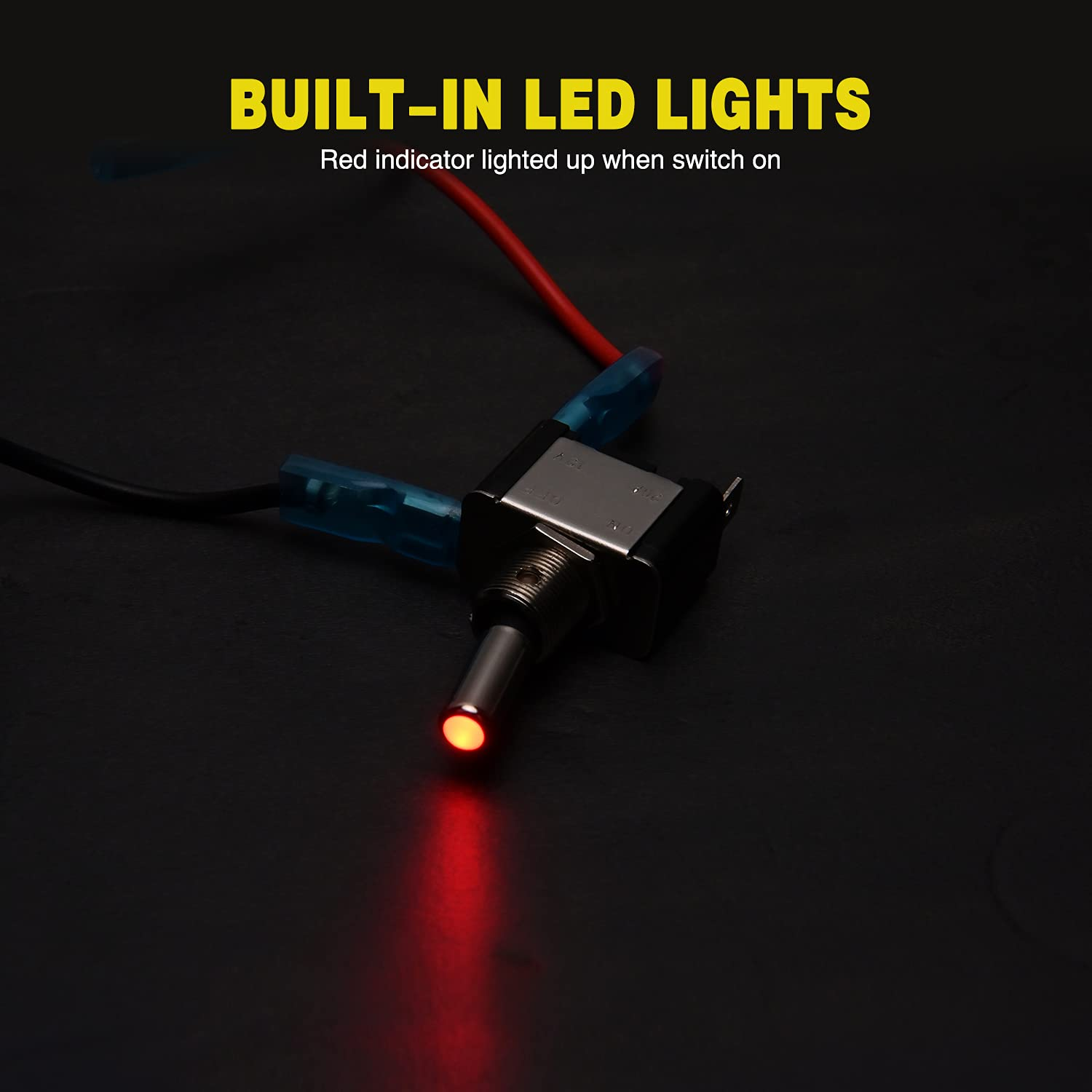

LED Indicator
When you installed this switch on any 12 Volt DC source, LED will light up when you turn on the switch. You can easily use this in daily life.
SPST 3 terminal PIN
3 Pin terminals i s made of brass copper, the blade type terminals for quick connections of plug and play.

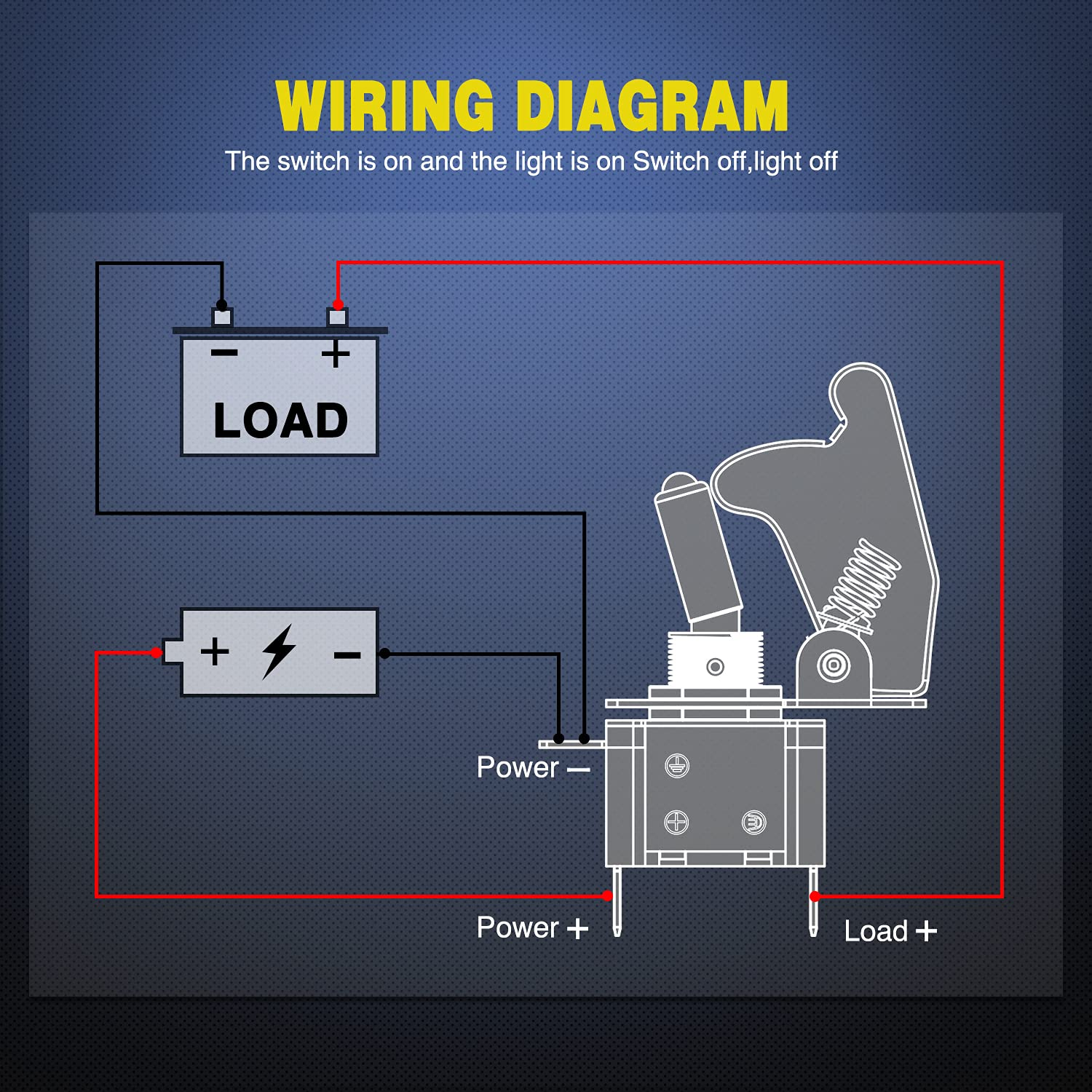

Wiring method
Related Prouducts
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
|
|---|---|---|---|---|---|---|---|
|
Customer Reviews
|
4.3 out of 5 stars 28
|
3.8 out of 5 stars 26
|
4.3 out of 5 stars 223
|
4.4 out of 5 stars 31
|
4.6 out of 5 stars 227
|
4.4 out of 5 stars 249
|
4.7 out of 5 stars 1,439
|
|
Price
|
$9.99$9.99 | $23.39$23.39 | $9.99$9.99 | $9.99$9.99 | $8.99$8.99 | $12.59$12.59 | $9.89$9.89 |
|
Switch Type
|
ON-OFF | ON-OFF | ON-OFF | ON-OFF | ON-OFF | ON-OFF | ON-OFF |
|
Rated Current
|
20A 12V DC | 5A 12-24V DC | 20A 12V DC | 2A 12V DC /5A 24VDC | 20A 12V DC | 20A 12V DC | 20A 12V DC |
|
Mounting Hole Size
|
20mm | 16mm | 20mm | 16mm | 28.8mm | 12mm | 20mm |
|
Jumper Wires
|
✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
|
Rating
|
12V DC | 12-24V DC | 12V DC | 12-24V DC | 12V DC | 12V DC | 12V DC |
- Function: Red LED toggle switch with 3 pin blade type terminals, SPST design(single pole single throw), Rated at 20A 12V DC and designed with rocker style easy to turn on and off.
- Safety cover: Transparent red “aircraft” style safety cover prevents accidental start. The toggle switch can be turned on only after you flip the switch cover and toggle it to on position. And the switch get off automatically when you close the cover.
- LED indicator: The red LED indicator will be illuminated when the switch is turned on.

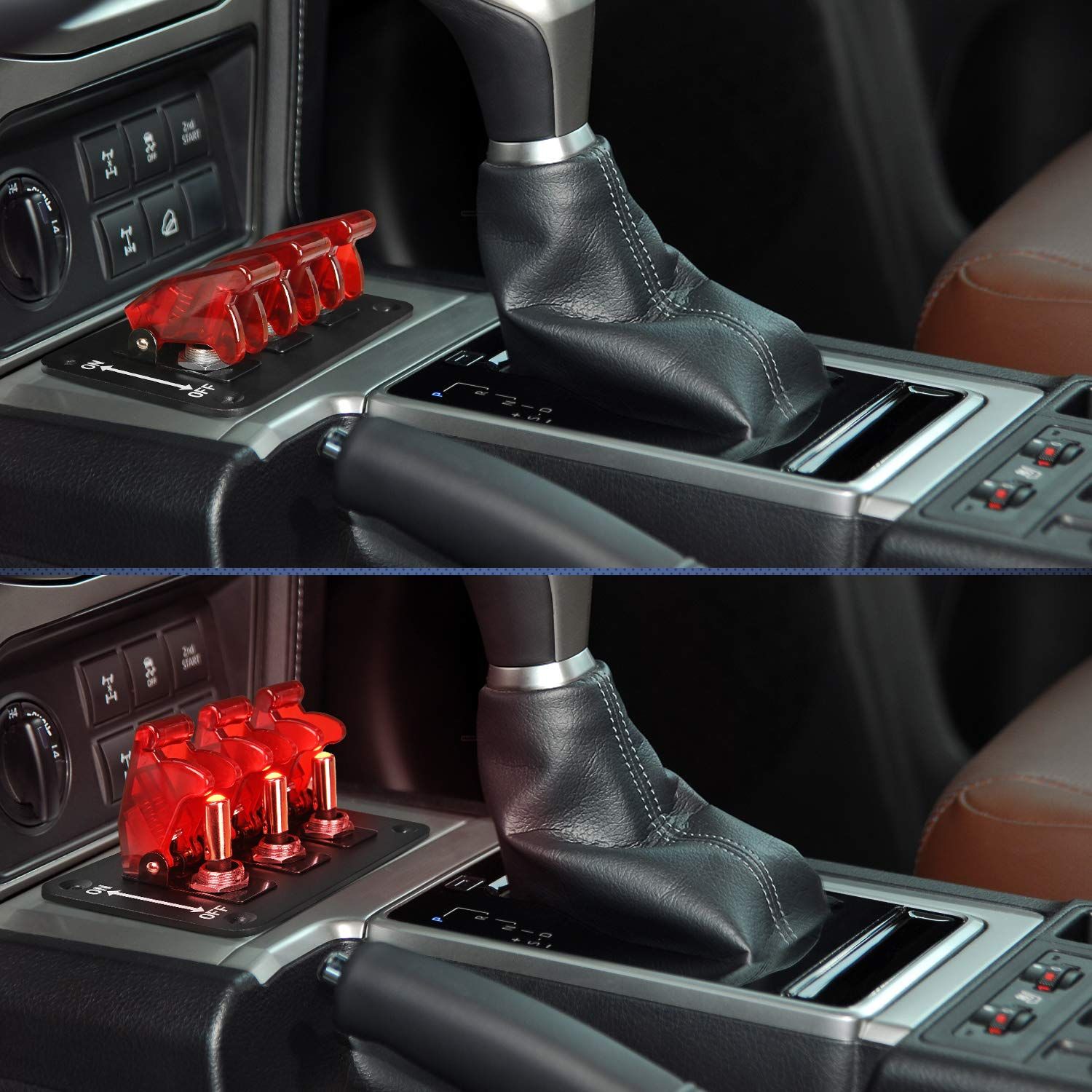

- Wide Application:Suitable for any 12V motorized vehicles such as cars, trucks, boats, atvs, utvs, RVs,motorhomes, racecars or any off road vehicles.

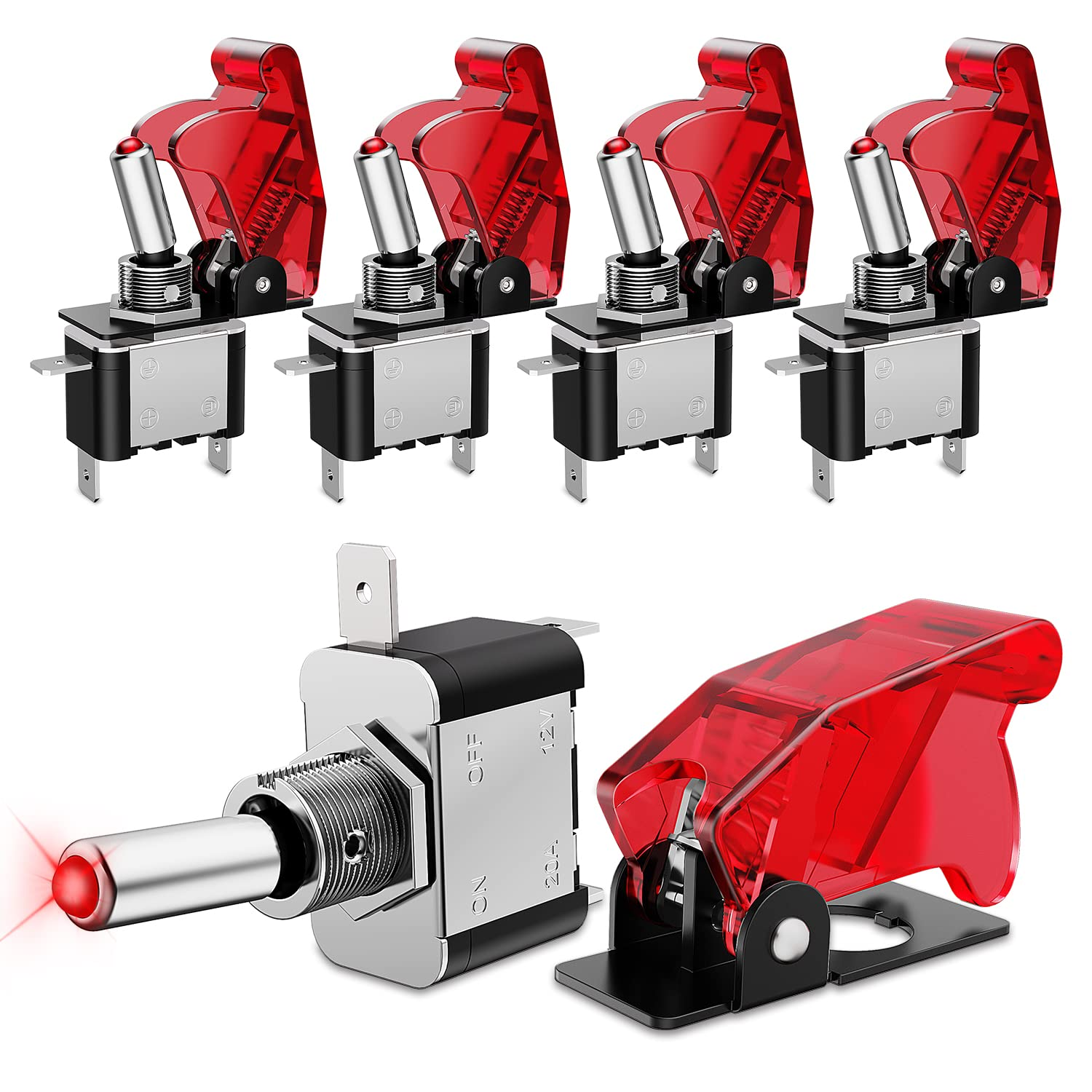

- Package Includes: 5 PCS toggle switches with safety covers, a wiring diagram.
