Description

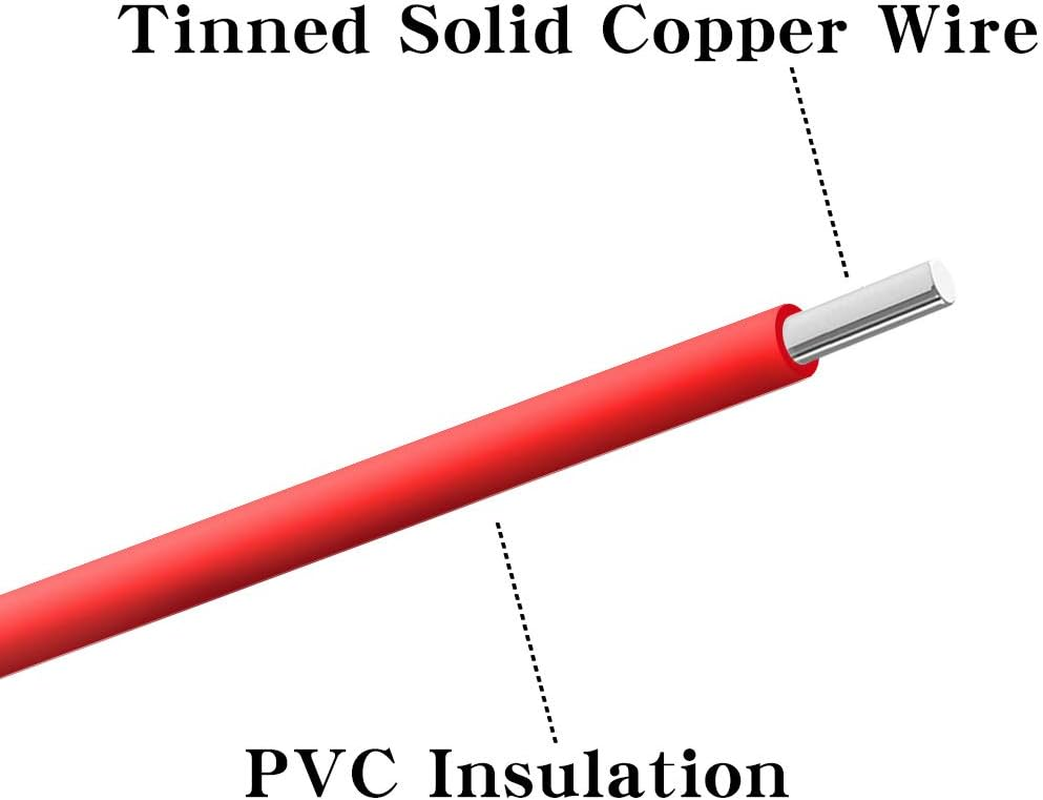

Introducing the BNTECHGO 22 Gauge PVC 1007 Solid Electric Wire – the perfect solution for all your electrical and electronic wiring needs. This high-quality hook-up wire features a solid tinned copper conductor, ensuring excellent conductivity and reliability for your projects. Each roll includes 100 feet of vibrant red and black wire, making it easy to identify and organize your connections.
Designed with durability in mind, this wire boasts a robust PVC sheath that provides exceptional abrasion resistance and protection against oils, solvents, and chemicals. With a rated temperature tolerance of up to +105°C, you can trust this wire to perform even in challenging environments. The low-fray design allows for easy handling, stripping, and termination, making your installation process smooth and hassle-free.
Safety is a top priority, and this wire is flame retardant, meeting the VW-1 flame test standards. It is highly recommended for internal wiring of electrical or electronic equipment, ensuring a secure and safe connection for all your devices.
Specifications:
Conductor AWG: 22
Conductor Material: Tinned Copper
Conductor Construction: Solid 1×0.65±0.008mm²
Insulation: PVC (Polyvinylchloride)

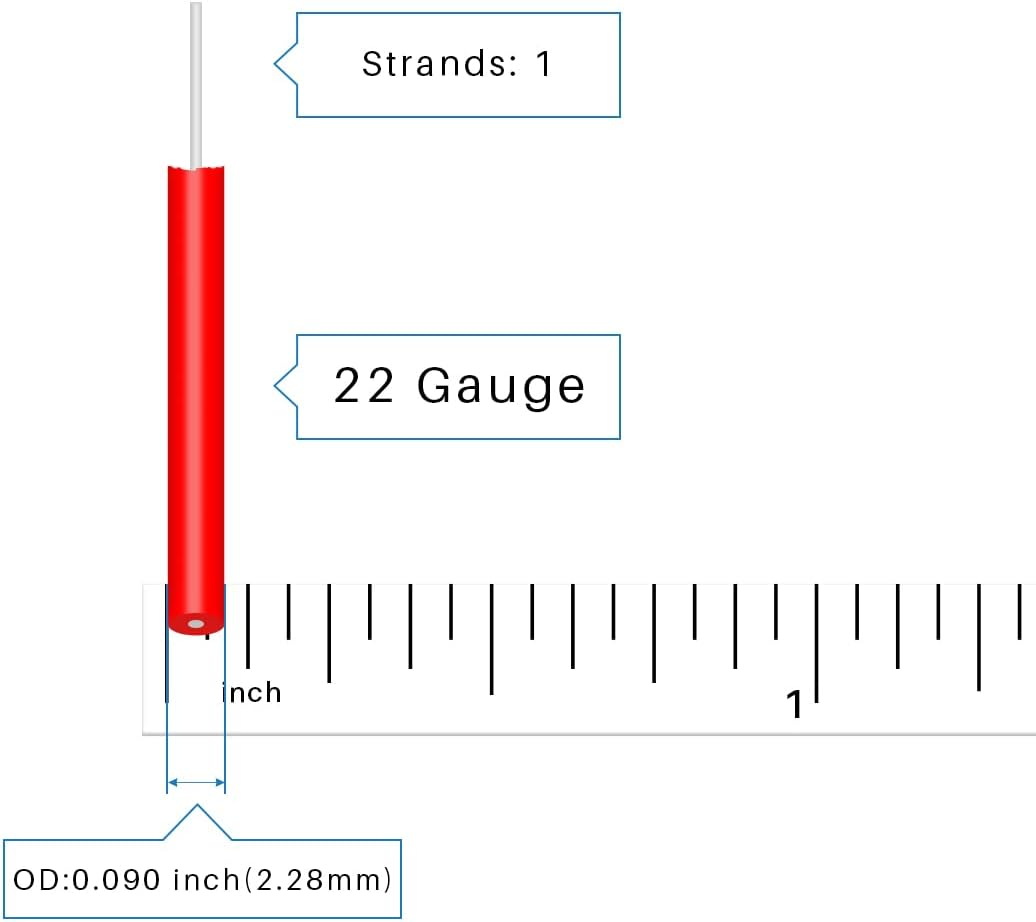

Over Diameter: 2.28±0.1mm
Jacket Colour: Red and Black
Rated Temperature: 105°C
Rated Voltage: 300V
FLAME TEST: VW-1

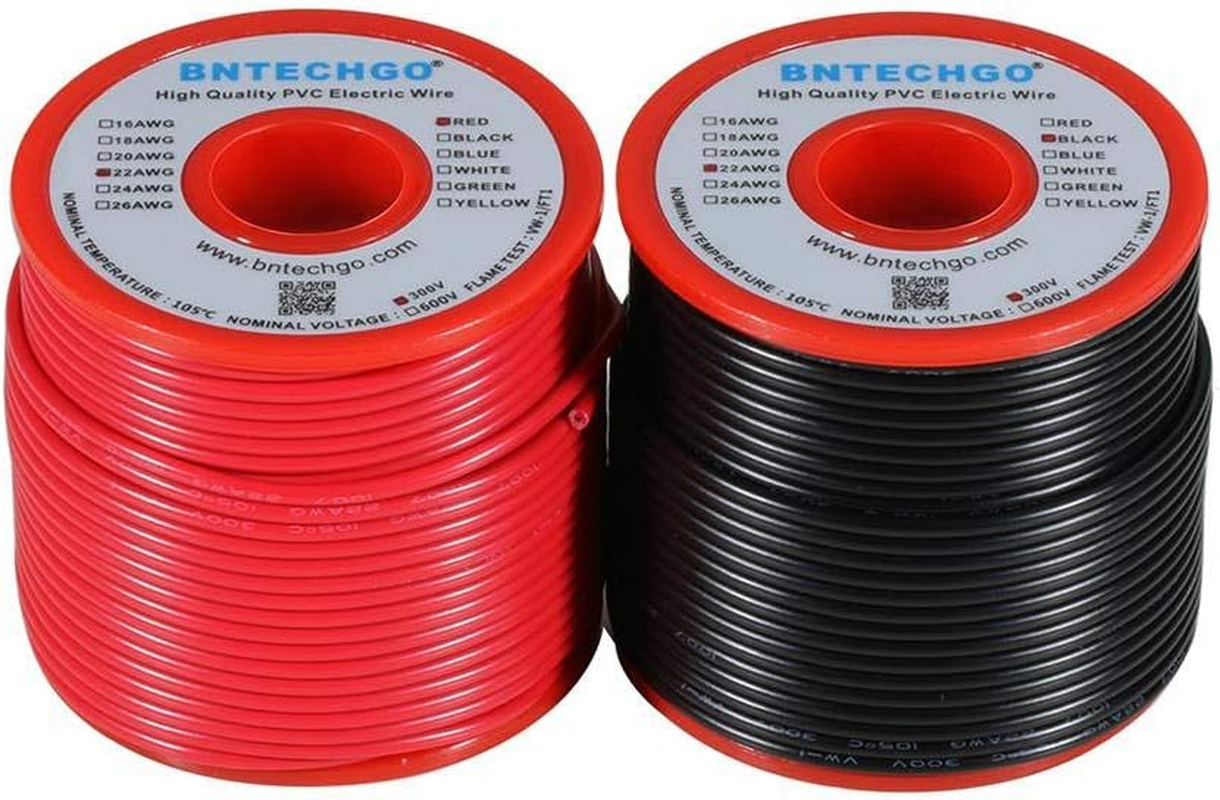

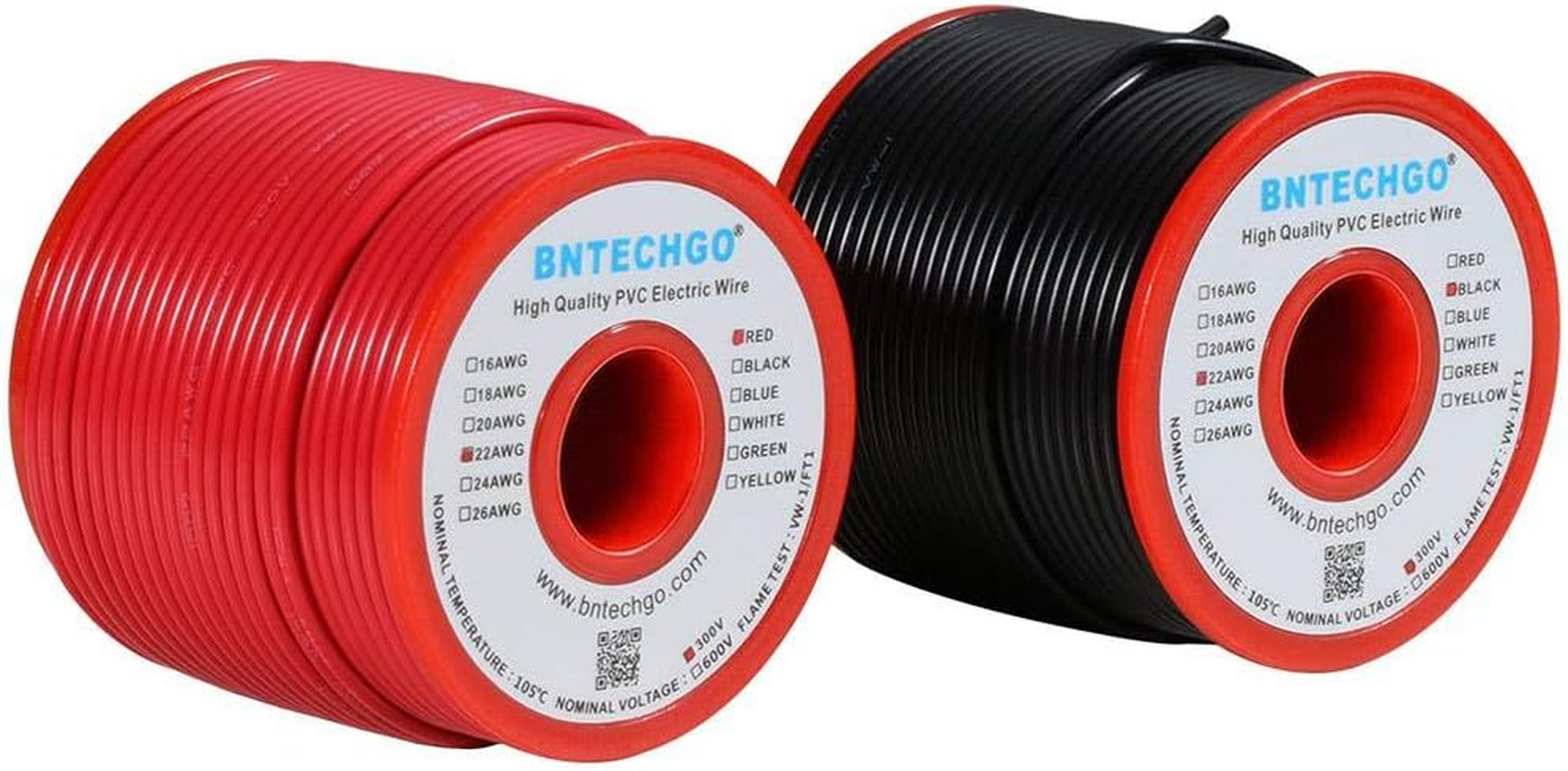

Packaging: Red and Black, each color 100ft per reel
- Solid Single Core Wire 1007 22 AWG Hook-Up Wire: Solid tinned copper conductor with a PVC sheath.
- Good abrasion resistance and resistance to substances such as oil, solvents, and chemicals: PVC Insulation that can withstand heats of up to +105°C.
- Easy handling, stripping, and termination: Low-fray design.
- Flame retardant: VW-1.
- This hook-up wire is recommended for internal wiring of electrical or electronic equipment.
