Description

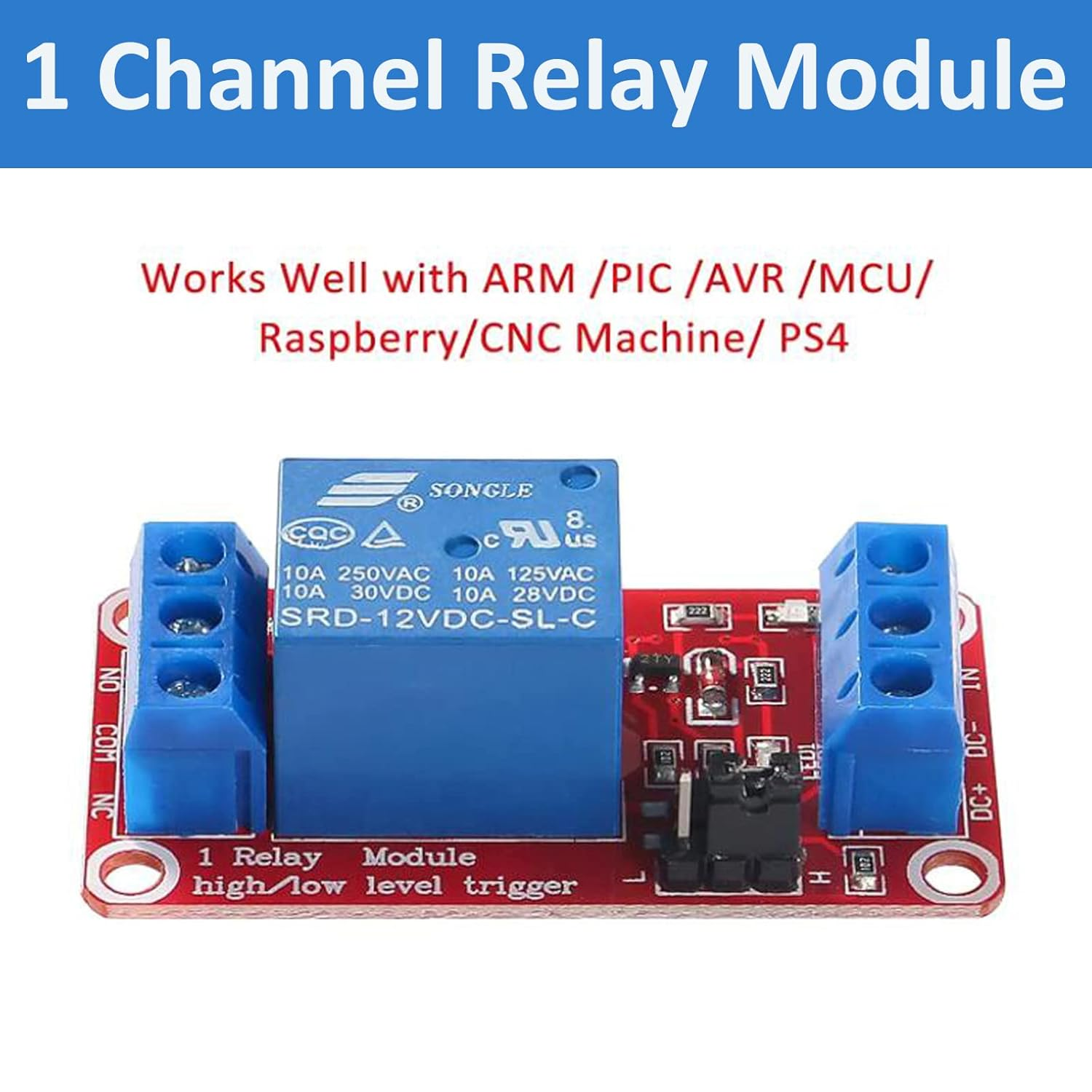

Product description

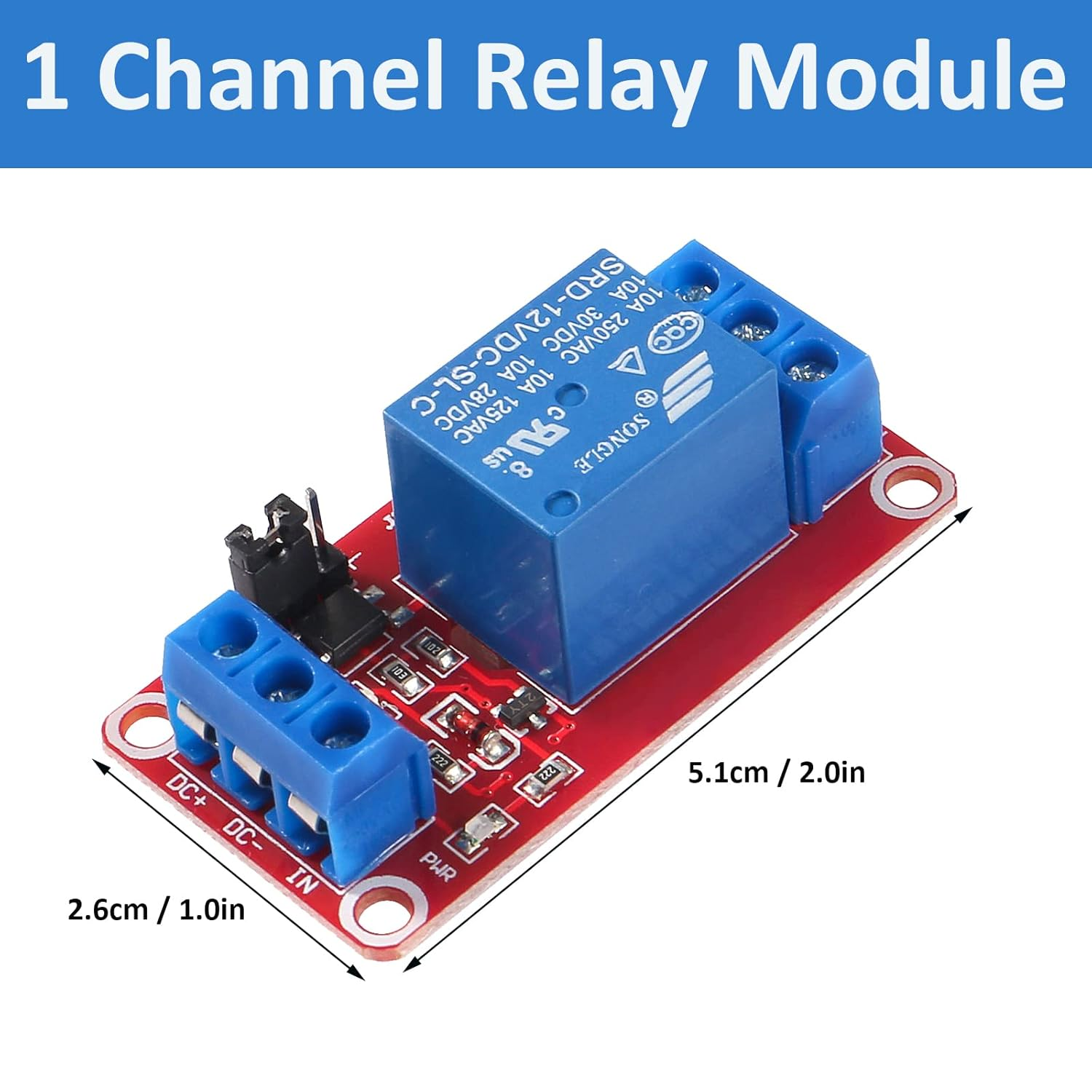

Specifications:
- Channel: 1 Channel
- Working Voltage: DC 12V
- Action Time (Under Rated Voltage): Less Than 10ms
- Release Time (Under Rated Voltage): Less Than 5ms
- Normally Opened Compatible Load: 10A 250VAC / 15A 125VAC / 10A 30VDC

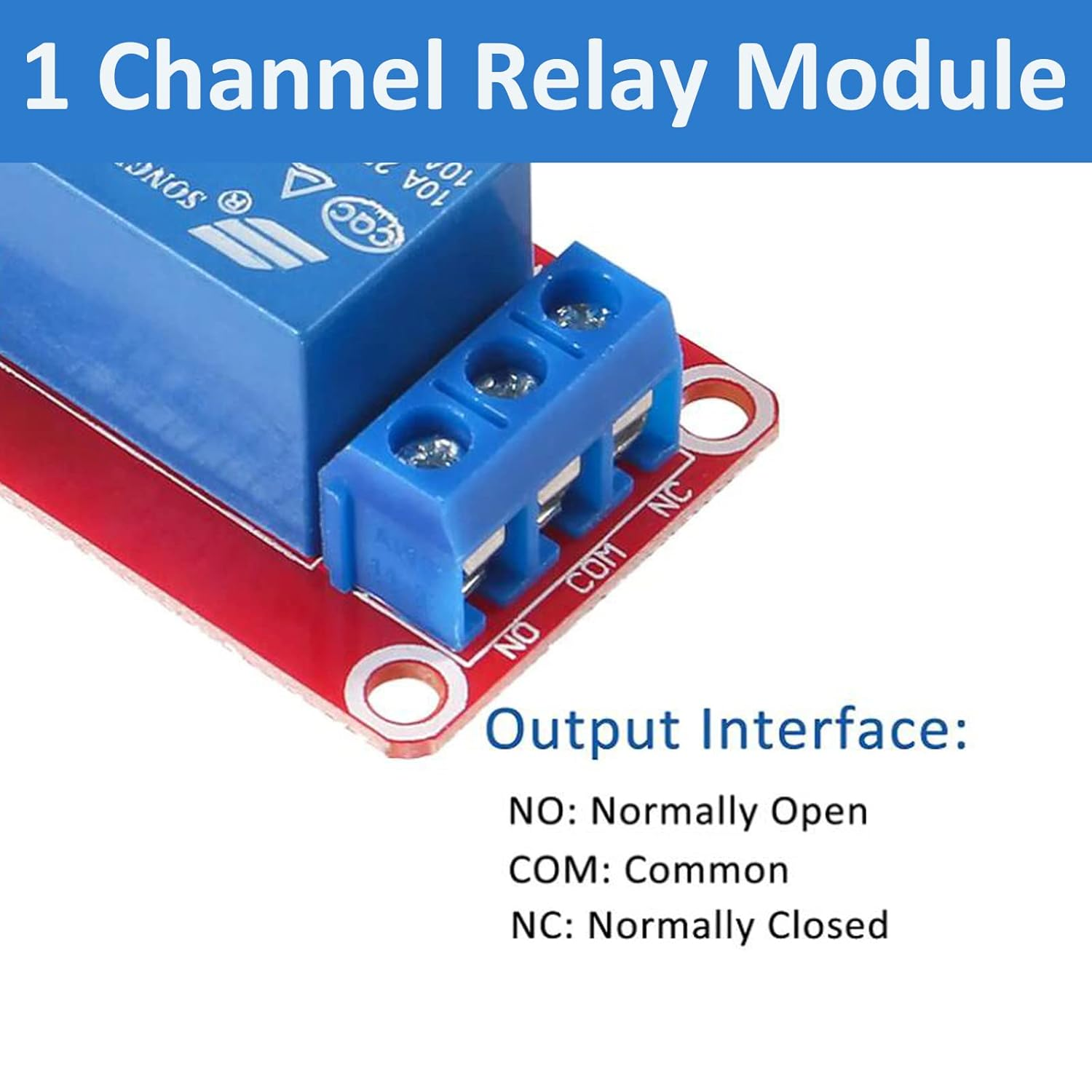

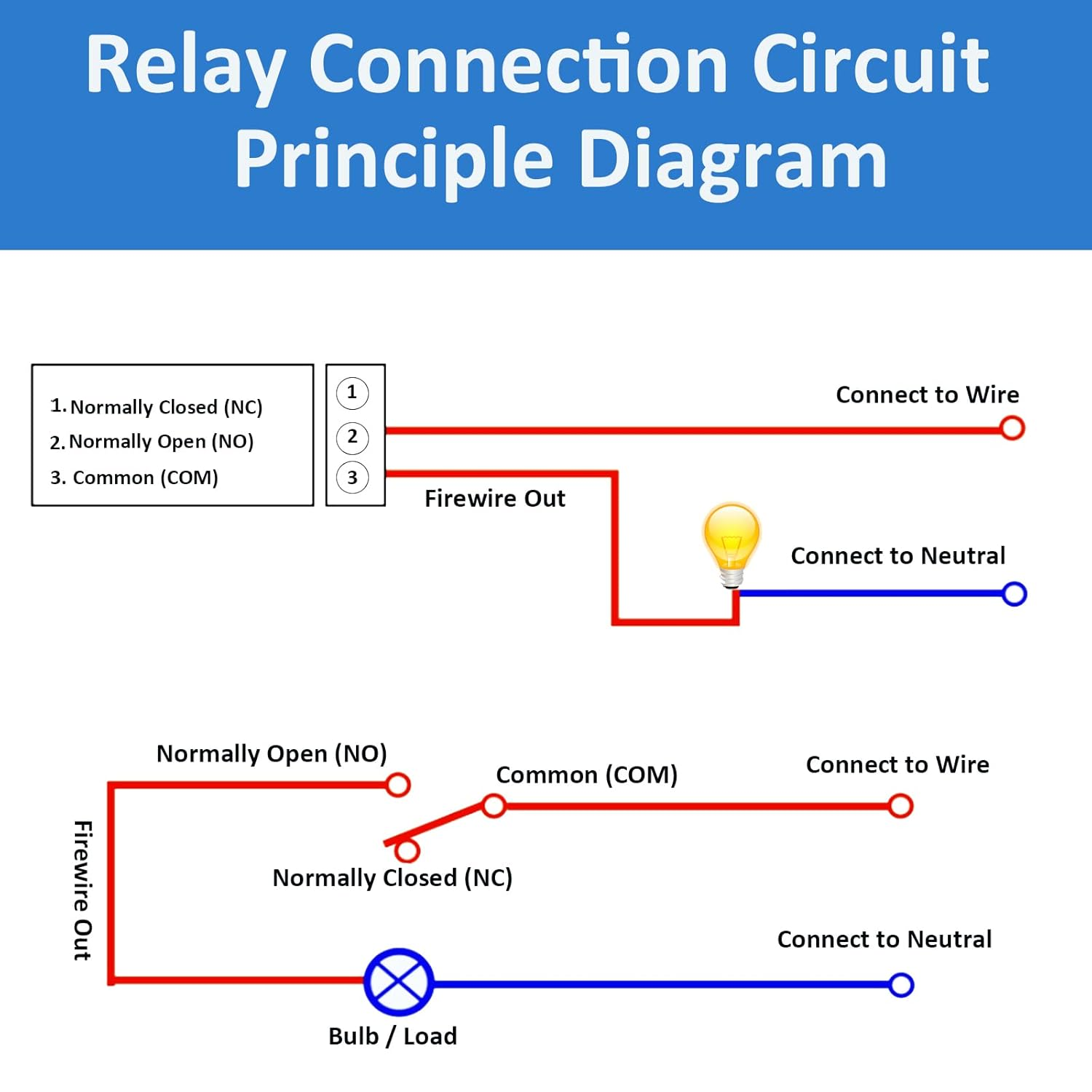

Output Interface:

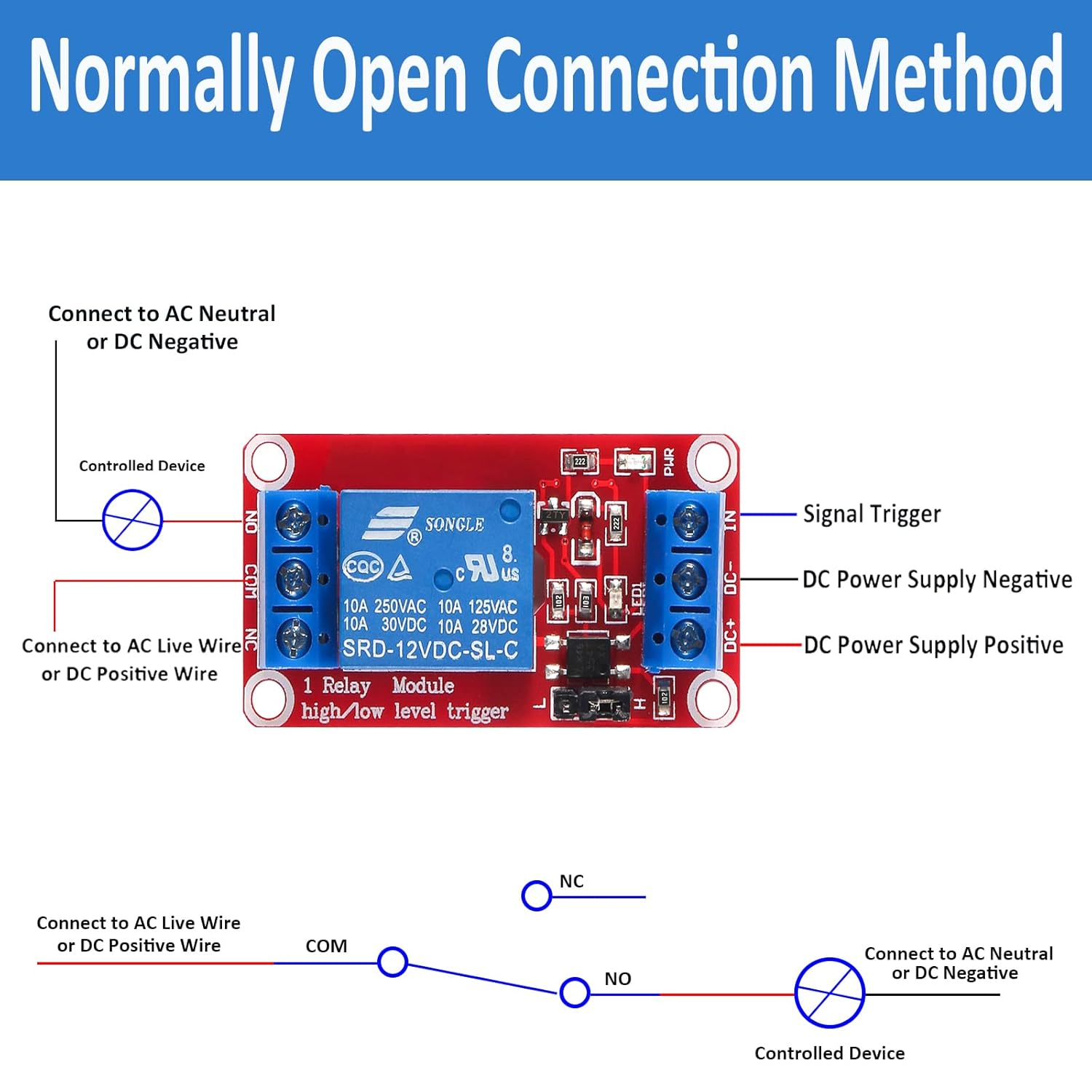

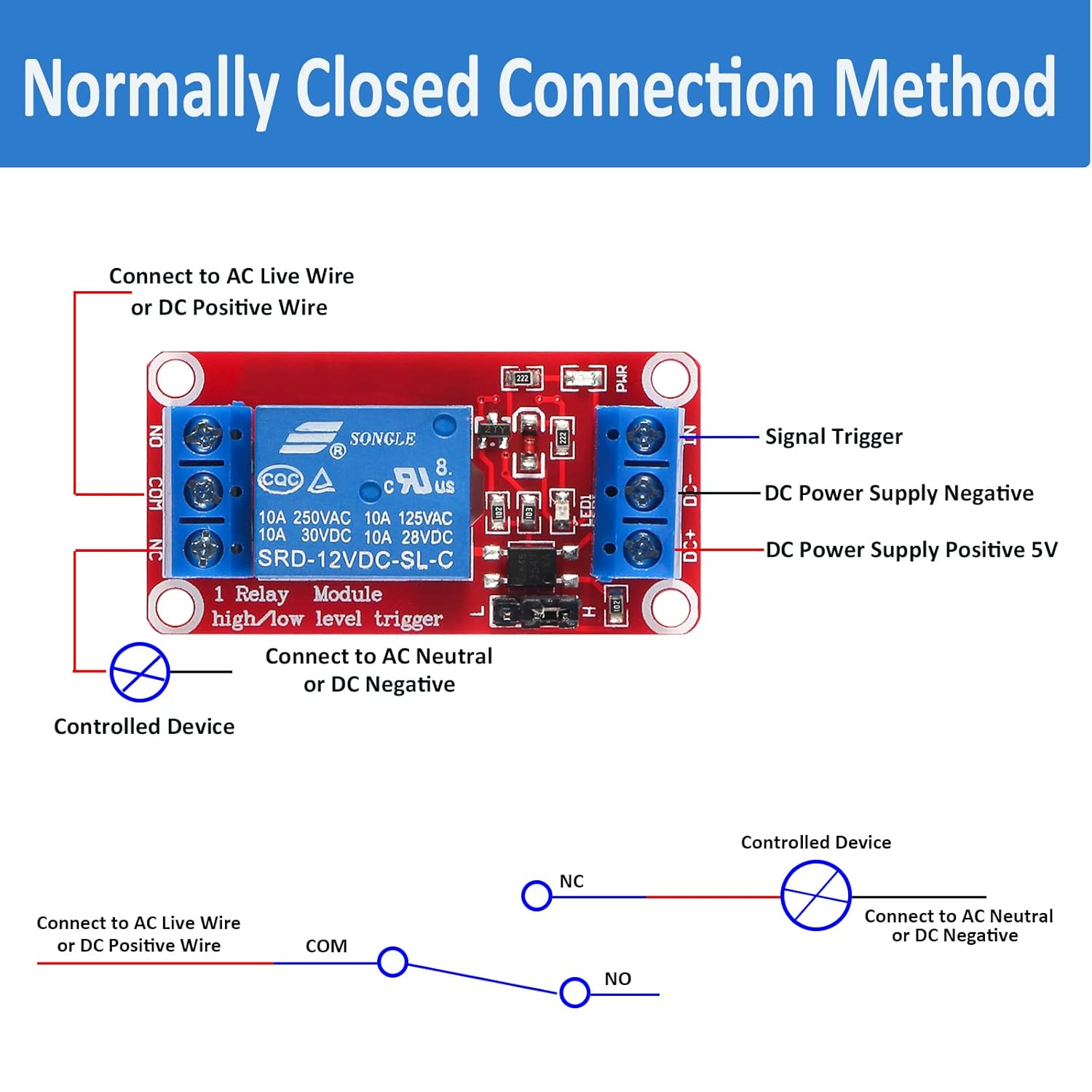

- Normally Opened (NO) : Connects to Common Pin (COM) when Relay is Activated
- Common Pin (COM) : Central connection point of the Relay
- Normally Closed (NC) : Connects to COM when Relay is Deactivated

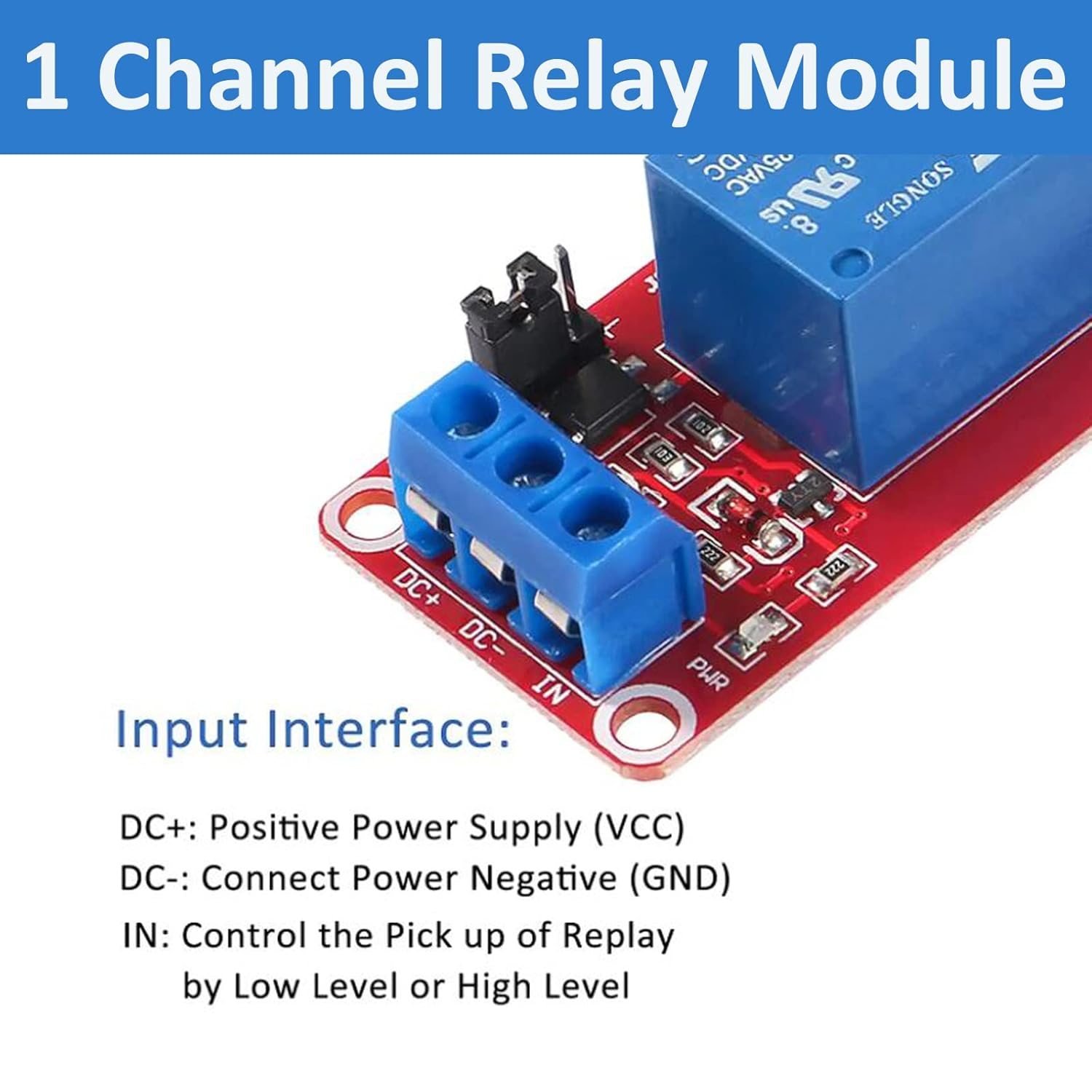

Input Interface:
- DC+: Connect to Positive Power Supply (12V)
- DC-: Connect to Negative Power Supply
- IN: Relay Module Trigger Pin (Supports High or Low Level Trigger)

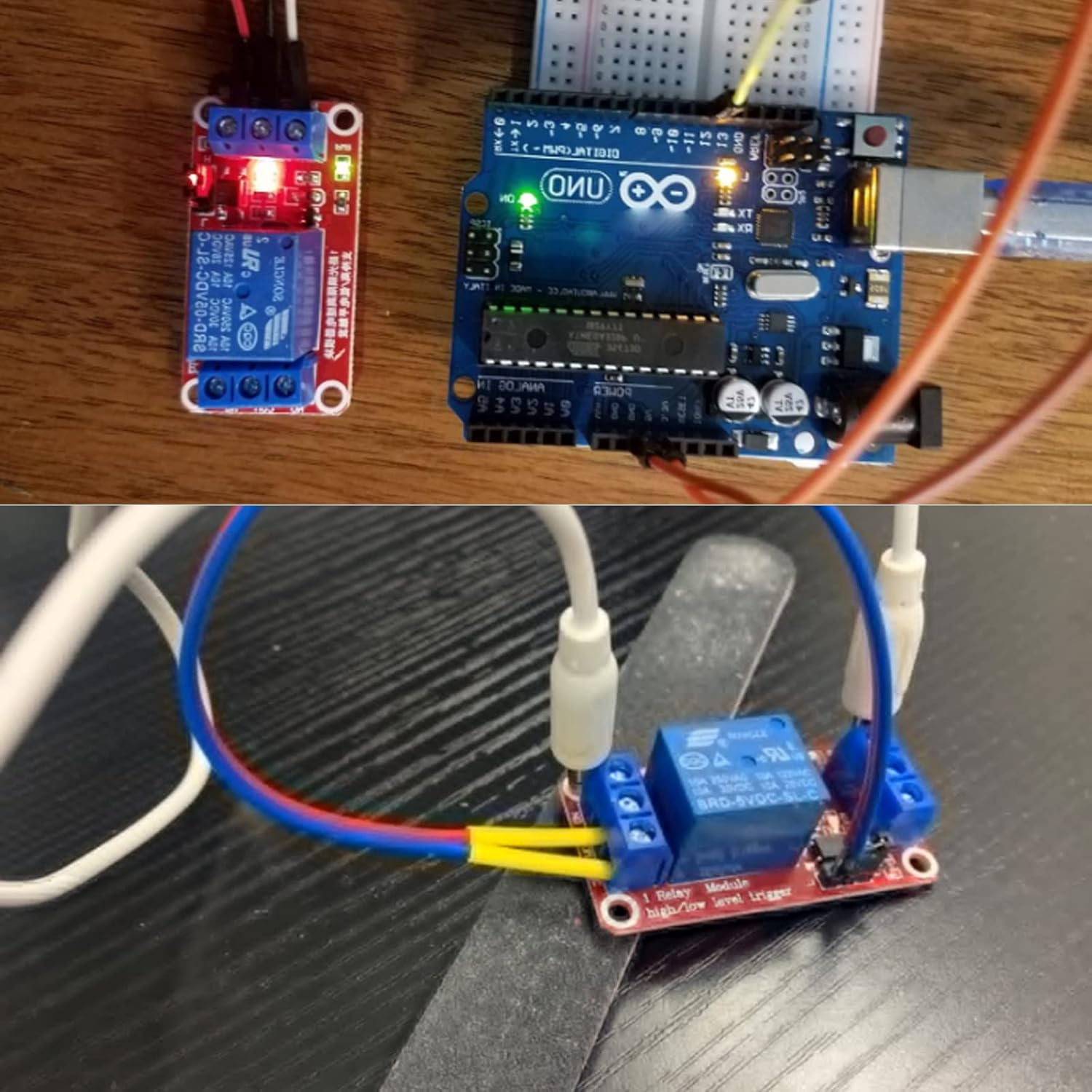

High or Low Level Trigger Select:
1. High Level Trigger
- When “IN” receives a High Level Signal, the “NO” connects with “COM”
- When “IN” receives a Low Level Signal, the “NC” connects with “COM”
2. Low Level Trigger
- When “IN” receives a Low Level Signal, the “NO” connects with “COM”
- When “IN” receives a High Level Signal, the “NC” connects with “COM”
Features:
- Working Voltage: DC 12V
- Compatible Load: 10A 250VAC / 15A 125VAC / 10A 30VDC
- Trigger Current: 2 – 5mA
- Trigger Voltage (LOW): 0 – 4V
- Trigger Voltage (HIGH): 4.5 – 12V
- Insulation Resistance: 100MΩ (500VDC)
- Power Indicator (Green), Relay Status Indicator (Red)
- User Friendly Interface Design for Easy Wiring
Package Contents:

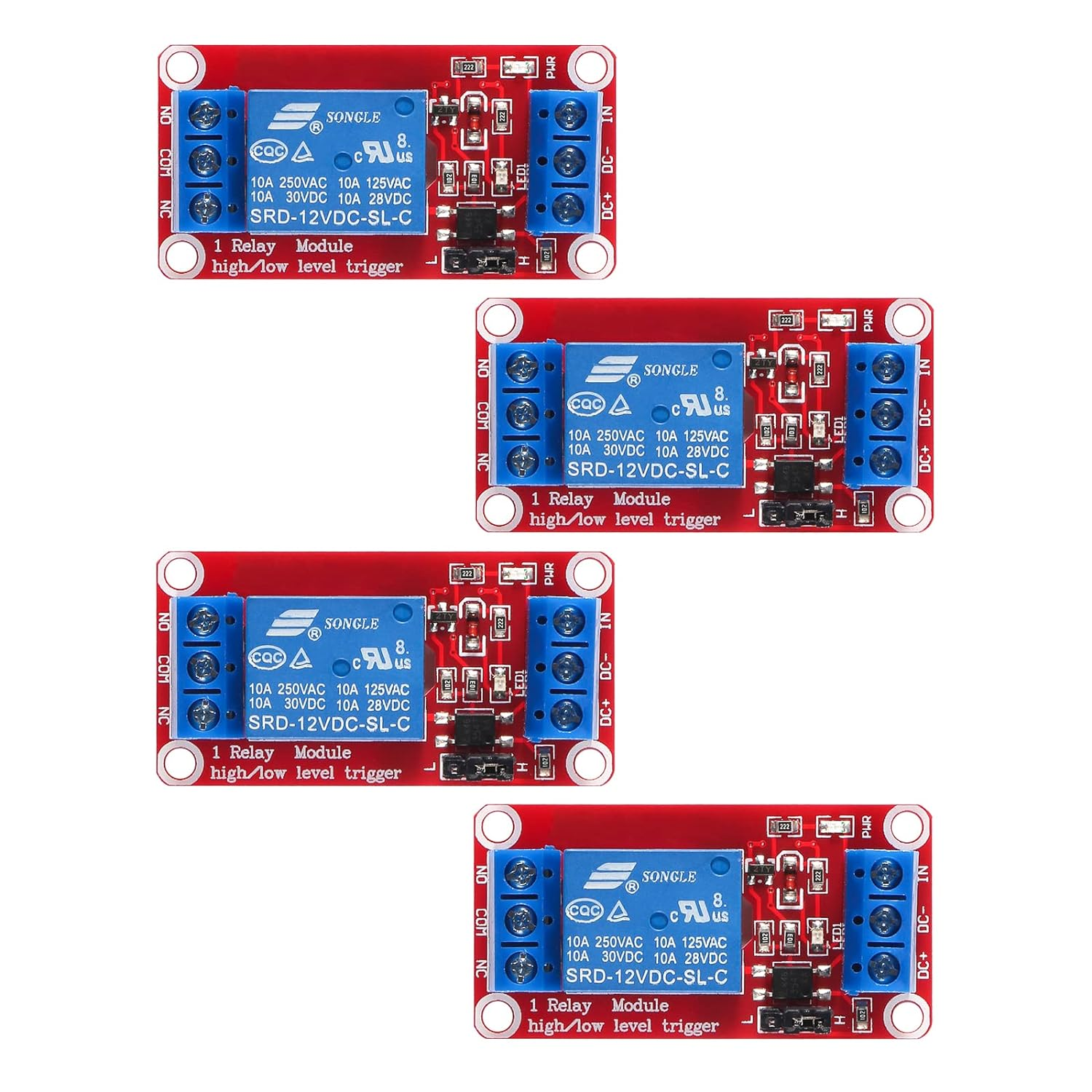

- 4x 1 Channel 12V Relay Module with Optocoupler Support High/Low Level Trigger
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
|
| Customer Reviews |
4.0 out of 5 stars 45
|
4.2 out of 5 stars 15
|
4.4 out of 5 stars 55
|
4.6 out of 5 stars 38
|
4.8 out of 5 stars 43
|
4.3 out of 5 stars 15
|
|---|---|---|---|---|---|---|
| Price | $6.99$6.99 | $8.99$8.99 | $8.99$8.99 | $8.99$8.99 | $8.49$8.49 | $8.99$8.99 |
| Channel | 1 Channel | 2 Channel | 2 Channel | 4 Channel | 8 Channel | 8 Channel |
- 12V Relay Module: Reliable operation with a working voltage of DC 12V and a maximum load capacity of AC 250V/10A, DC 30V/10A; Trigger current of opto-isolator is 5mA
- Fault-Tolerant Design: Engineered with a fault-tolerant design that ensures the relay will not operate if the control line is broken; all interfaces can be wired directly through terminals for seamless integration
- Optocoupler Isolation: Features optocoupler isolation for enhanced driving ability and stable performance, protecting your I/O ports from potential damage caused by relay switch currents
- Jumper Design: Equipped with a jumper that allows you to set the unit to change state with either a high or low signal; includes screw terminals for easy connection of relay (NC, C, NO) and input (Coil +, Coil – and Trigger)
- Wide Application: This versatile DC 12V Relay Module is compatible with a variety of platforms including ARM, PIC, AVR, MCU, Raspberry Pi, CNC machines, and more, making it an essential component for your electronic projects.
