Description
Product description

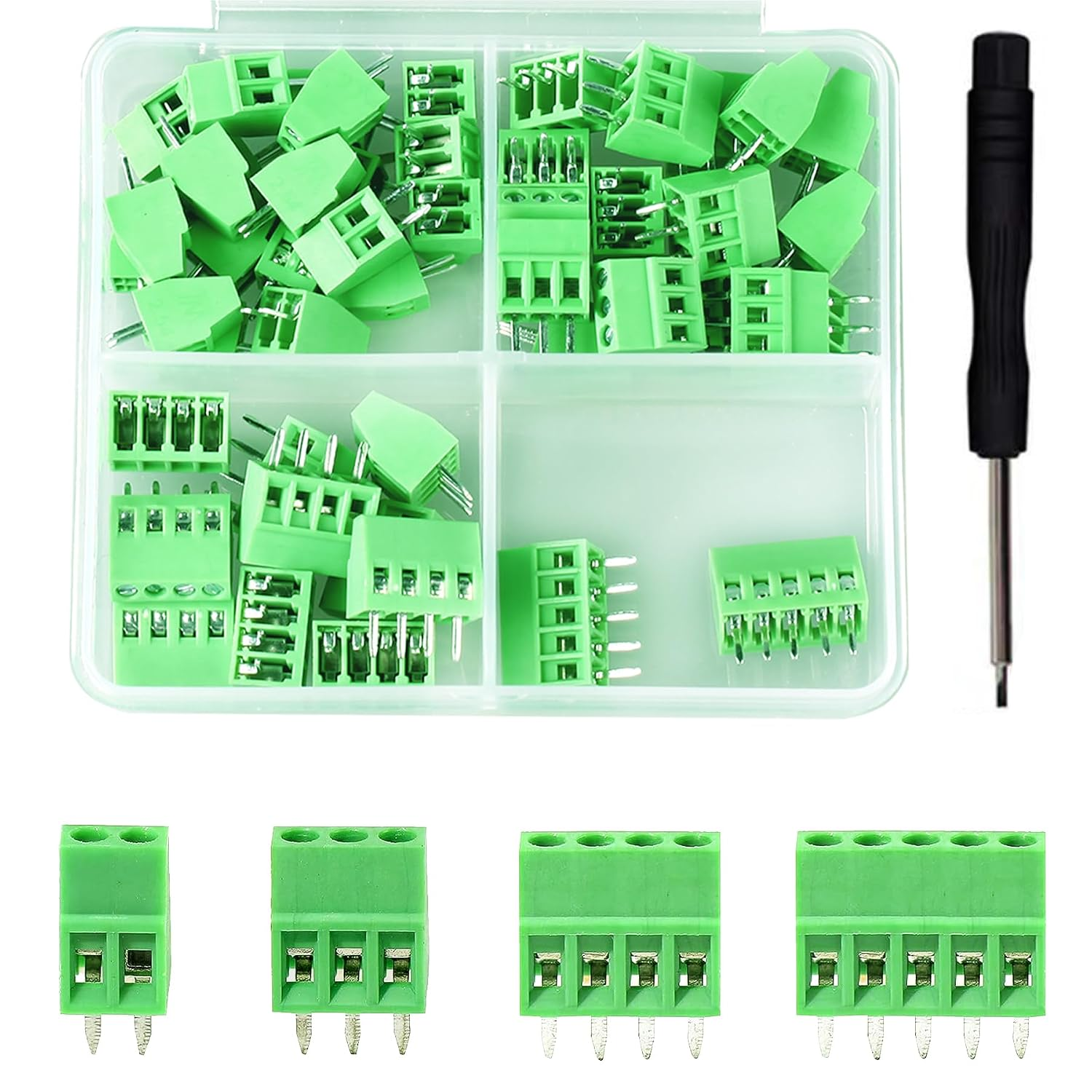

- Complete Kit: This comprehensive 52-piece set includes a variety of screw terminal block connectors, featuring 20 pieces of 2-pin, 20 pieces of 3-pin, 10 pieces of 4-pin, and 2 pieces of 5-pin connectors, along with a special screwdriver for easy installation and adjustments.
- Reliable Specifications: Rated for a voltage of 150V and a current of 6A, these connectors ensure secure and efficient electrical connections for your projects.
- Versatile Compatibility: Designed to accommodate wire sizes ranging from 18AWG to 26AWG, these screw terminals provide flexibility for various applications.

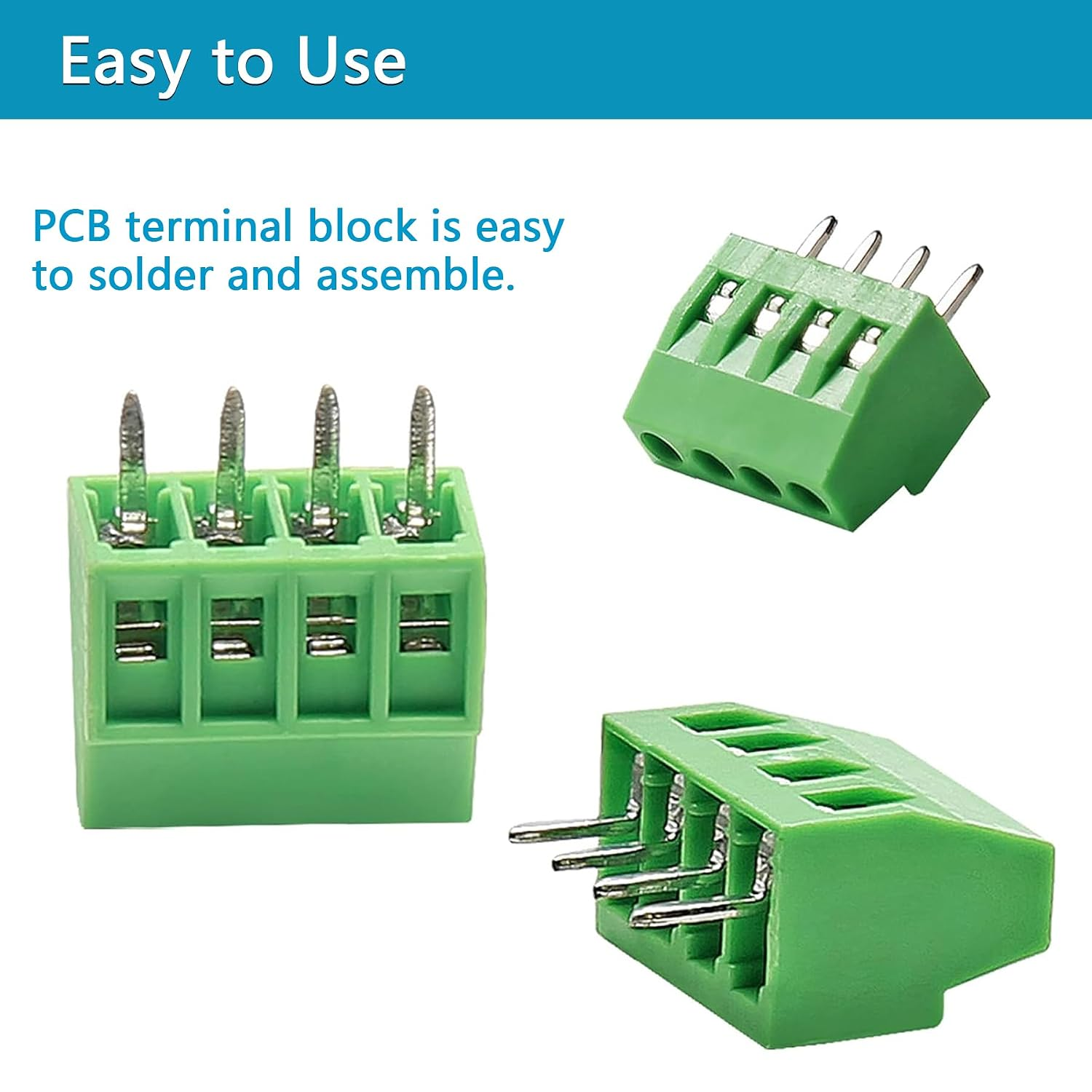

- Quick and Secure Connections: The screw terminal design allows for secure connections while enabling quick disconnection when necessary, making it ideal for prototyping and testing.

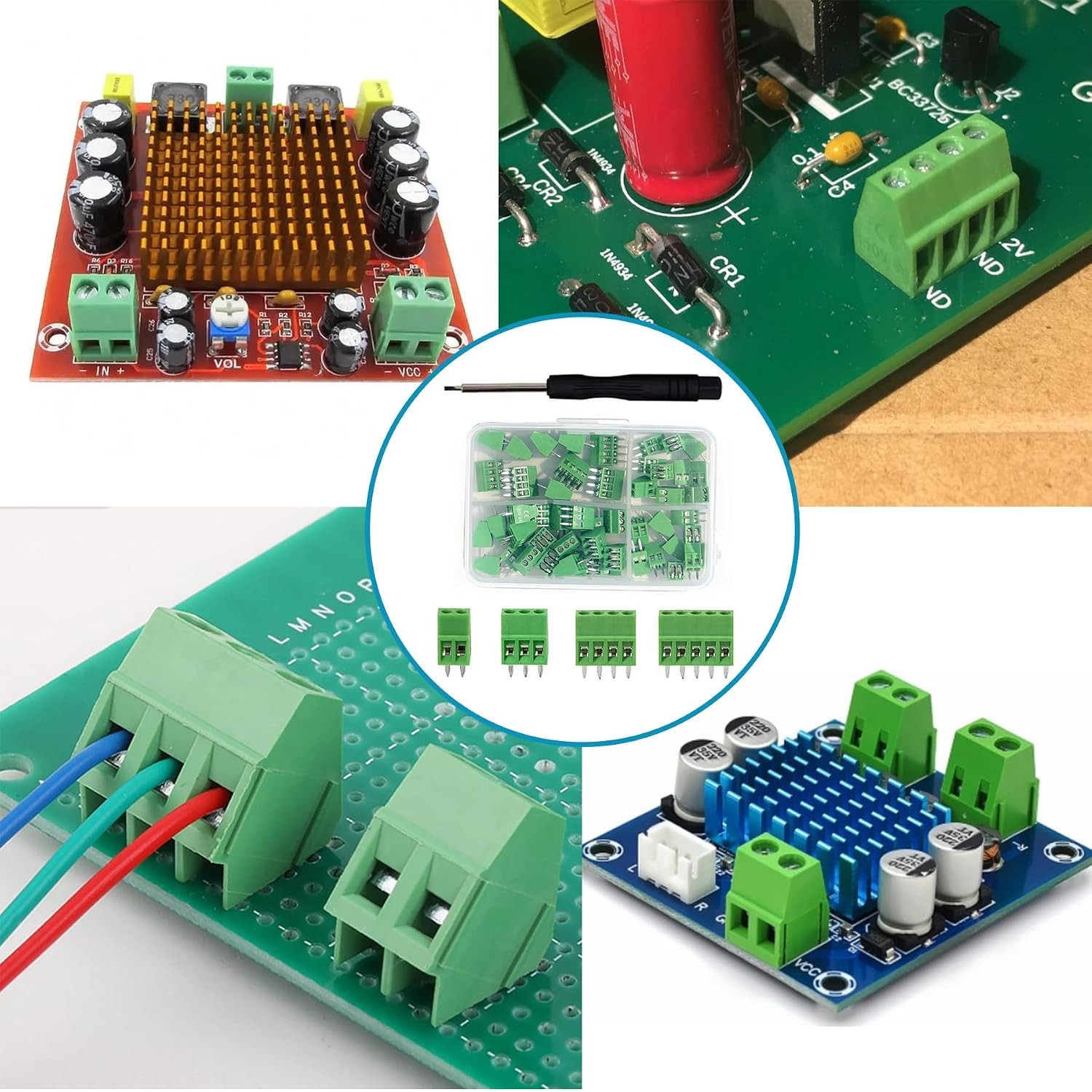

- Wide Applications: Perfectly suited for interfacing with I/O cards, data acquisition (DAQ) equipment, and other devices that utilize a 2.54mm/0.1in header connector. Compatible with popular platforms like Raspberry Pi (A+, B+, 2B, and 3B) and Arduino boards, which utilize a 0.1″ pitch pin header for GPIO expansion ports.
Specifications:

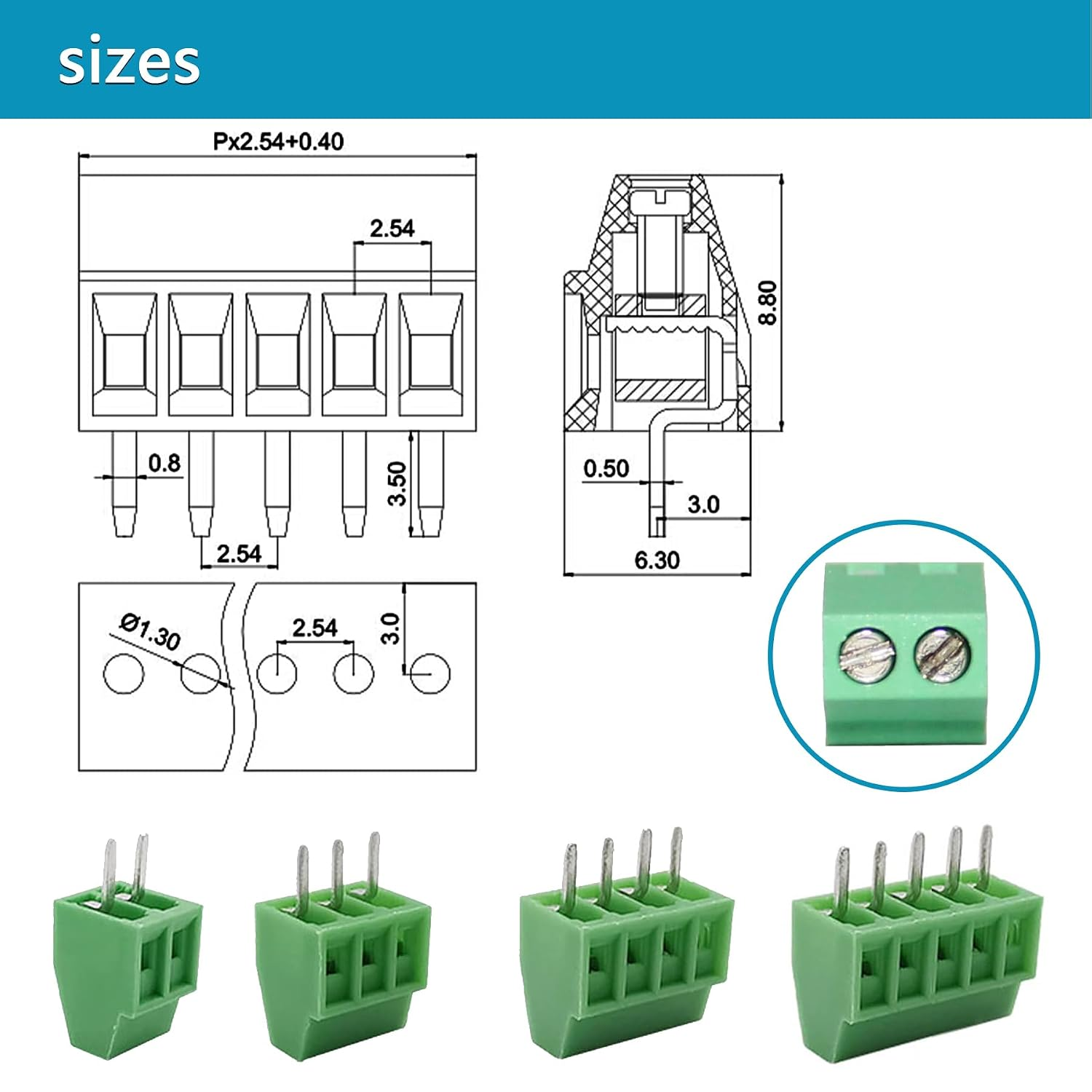

- Pitch: 2.54mm / 0.1”
- Material: Brass, Tin plated
- Screw Type: M1.6, steel, tin plated
- Clips: Stainless Steel
- Housing Material: PA66, UL94V-0
- Withstanding Voltage: AC 1250V/ 1Min
- Temperature Range: -40° ~ +105°
- Stripping Length: 5-6mm
- Maximum Tightening Torque: 0.1Nm (0.88lb-in)

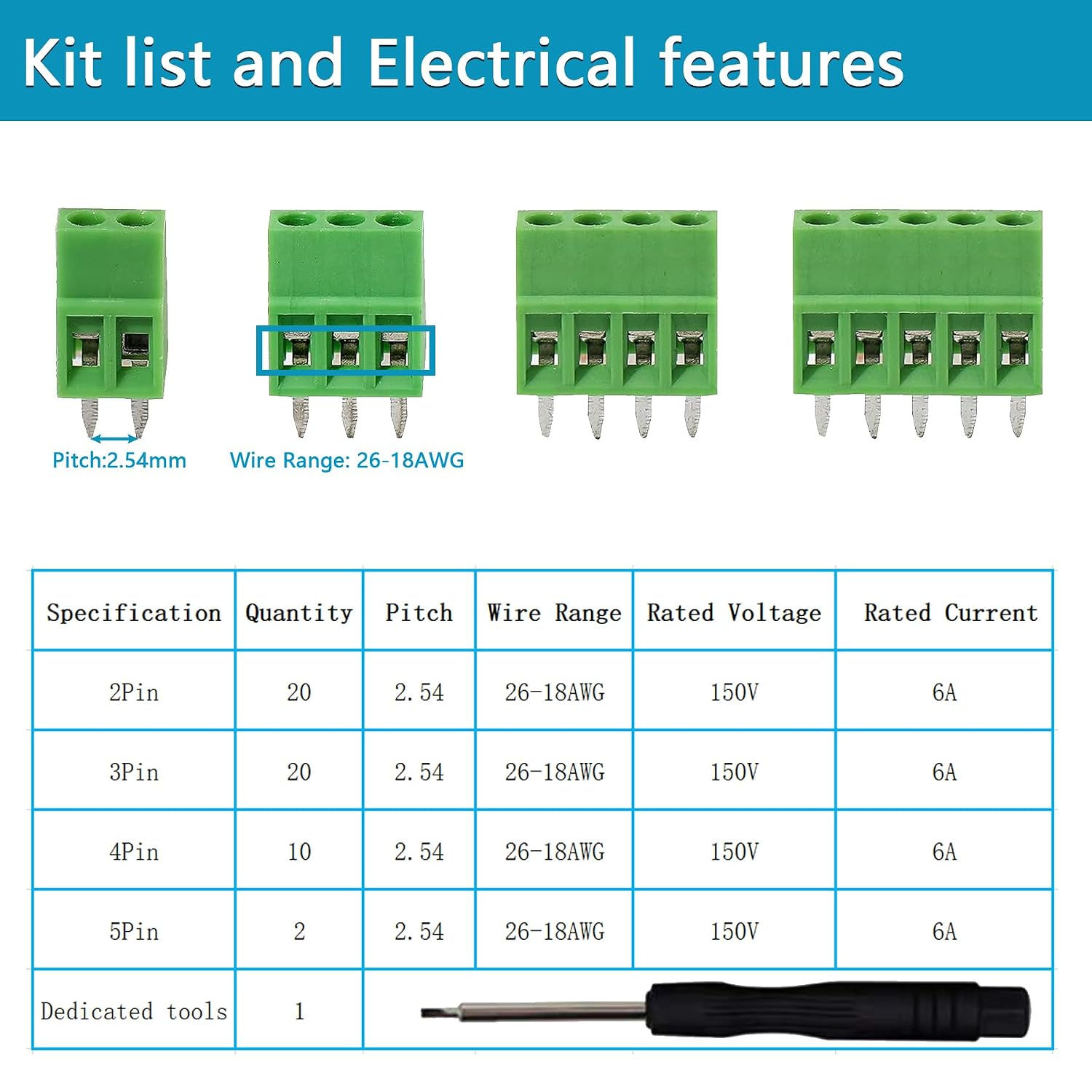

Package Contents:
- 20PCS 2P Terminal Block
- 20PCS 3P Terminal Block
- 10PCS 4P Terminal Block
- 2PCS 5P Terminal Block

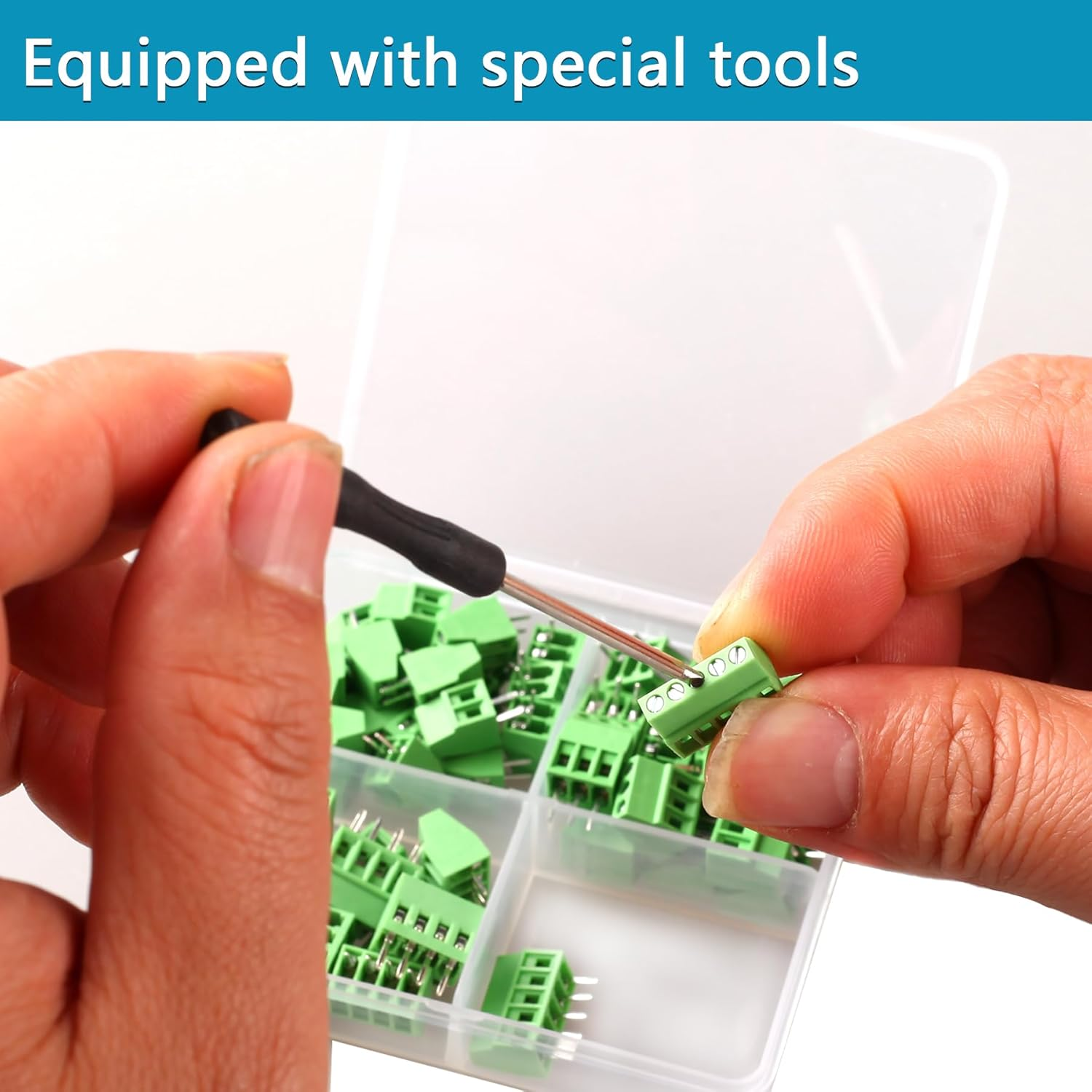

- 1PCS Special Screwdriver
- 1PCS Plastic Storage Box
