Description
Product description
Quality You Can Trust from WAGO, Packaged by Peppy Products LLC
As a leading supplier of WAGO connectors in the United States, we guarantee that you will receive only the highest quality and genuine products when you purchase from us.
- Quality guaranteed!
- Trusted USA business since 2015
Discover the 221 Series from WAGO
The WAGO 221 Series COMPACT Splicing Connector

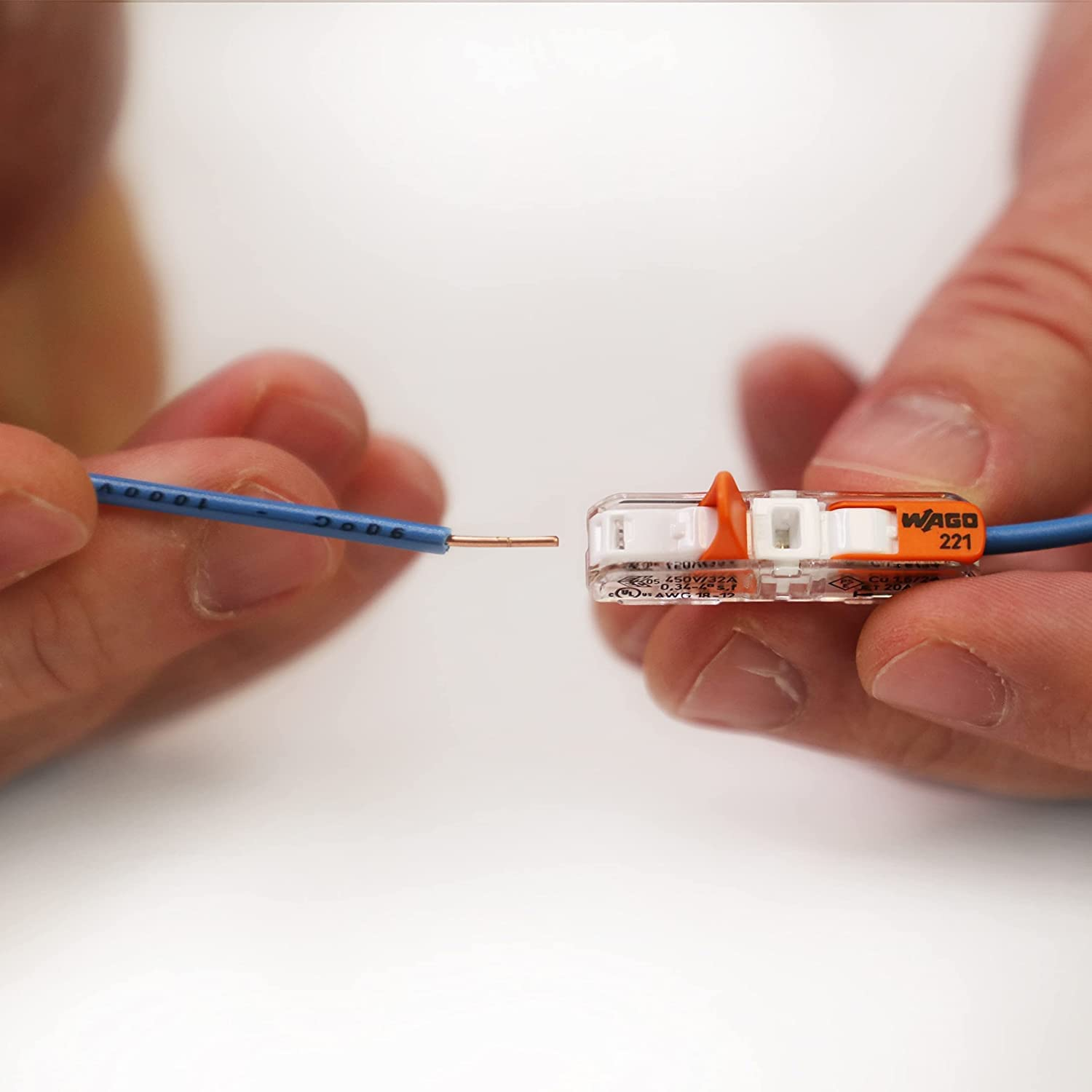

Experience the ease of electrical connections with WAGO’s innovative 221 Series Splicing Connectors. Simply pull the lever up, insert your conductor, and push the lever back down – it’s that simple! These tool-free, lever-actuated connectors allow for quick, safe, and reliable connections of solid, stranded, and fine-stranded conductors ranging from 24–12 AWG for the 221-41x and 20-12 AWG solid for the 221-2401 inline.
Redefining standards in electrical installation, the 221 Series LEVER NUTS splicing connectors are now more compact, user-friendly, and designed to accommodate larger conductors.

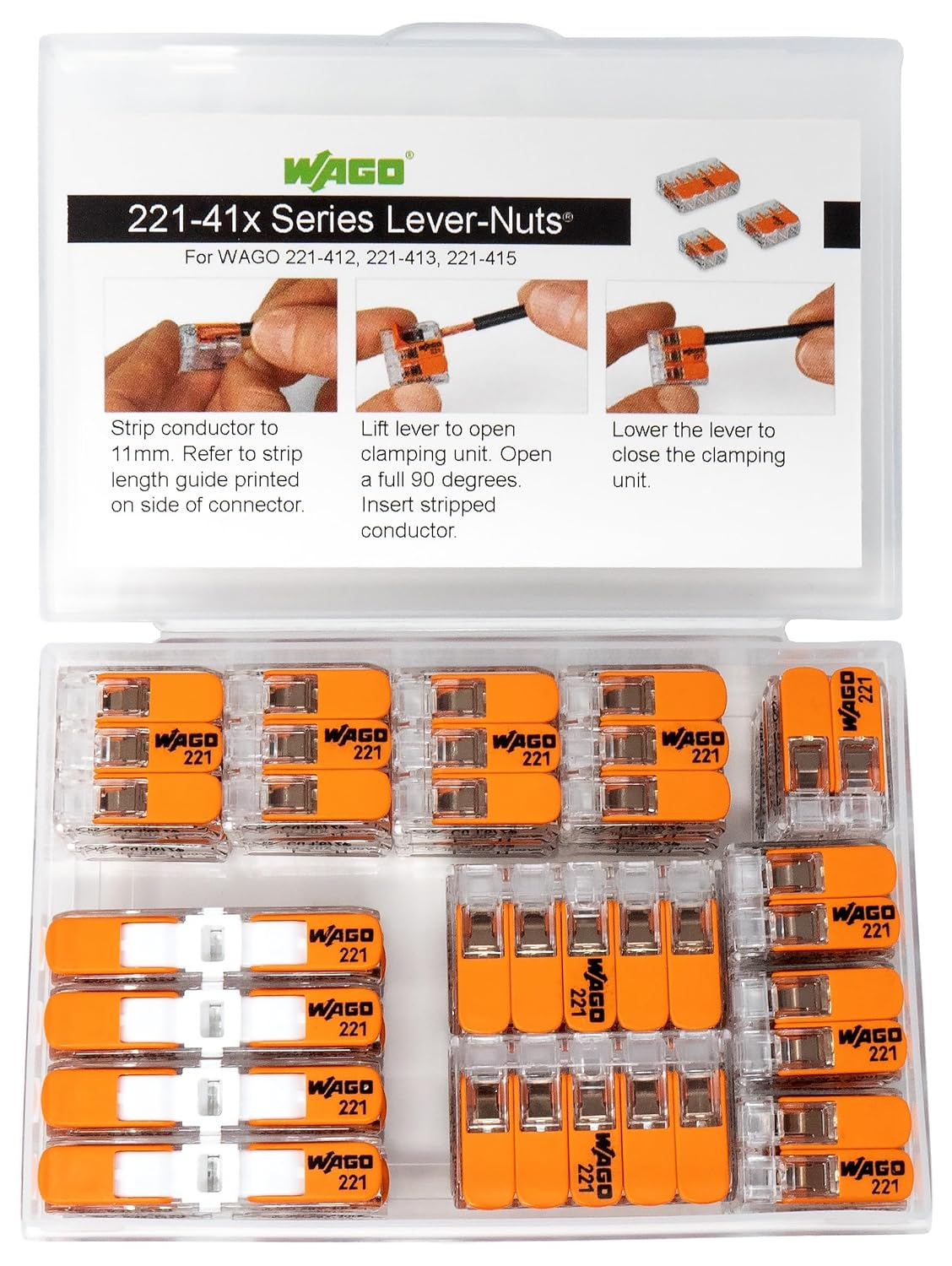

- Includes 4 sizes of WAGO 221 LEVER NUTS neatly packaged in a durable plastic case.
- Effortlessly terminate conductors from 24–12 AWG solid/stranded and 20-12 AWG solid for 221-2401 inline.
- Connect solid, stranded, and fine-stranded conductors with ease.
- Reusable design – simply pull the lever back up for reuse.
Unmatched Benefits
Two convenient test slots for easy verification

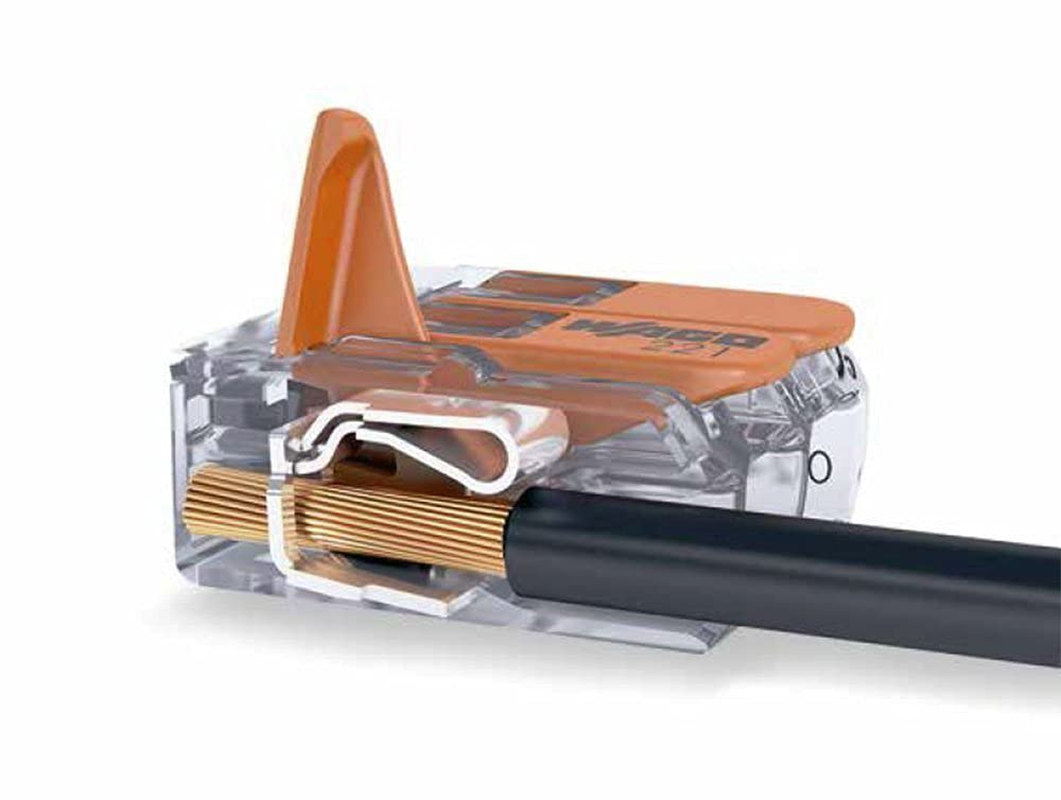

Transparent housing allows for easy visual inspection of wire insertion

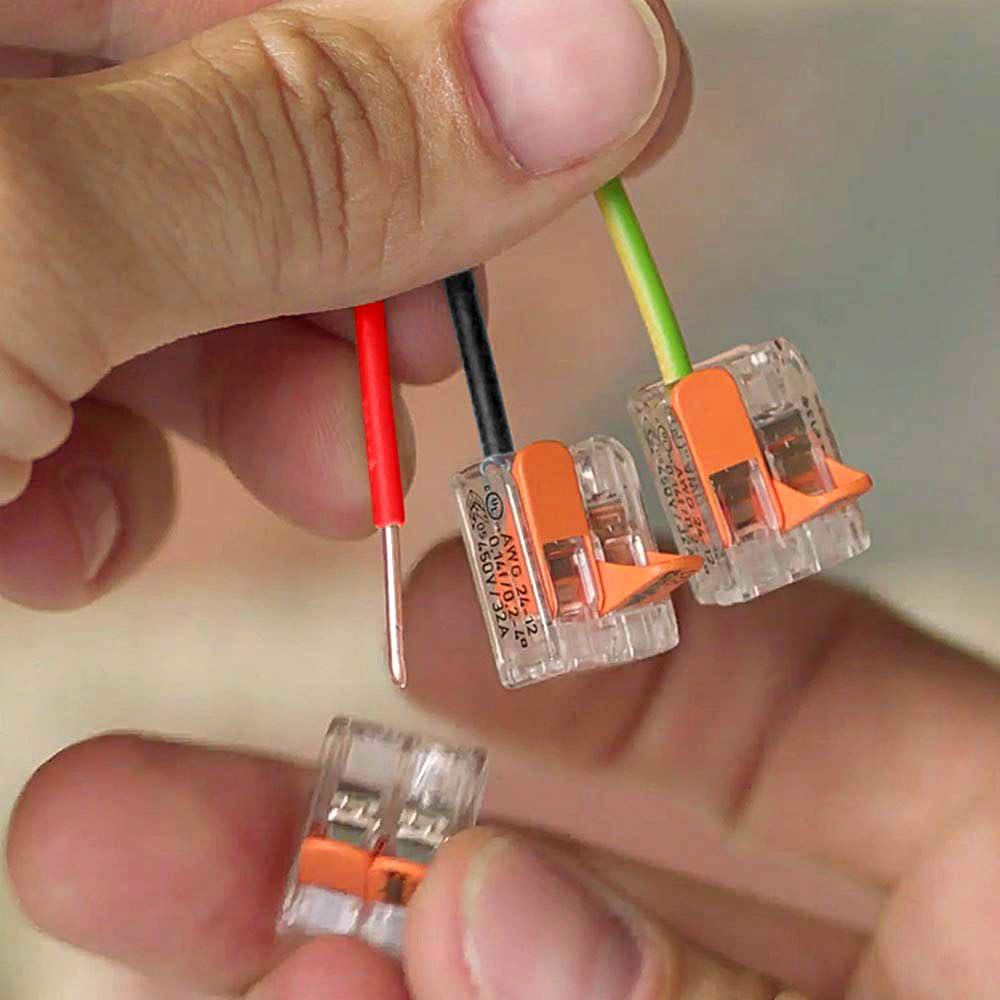

Effortlessly combine various types and sizes of wires

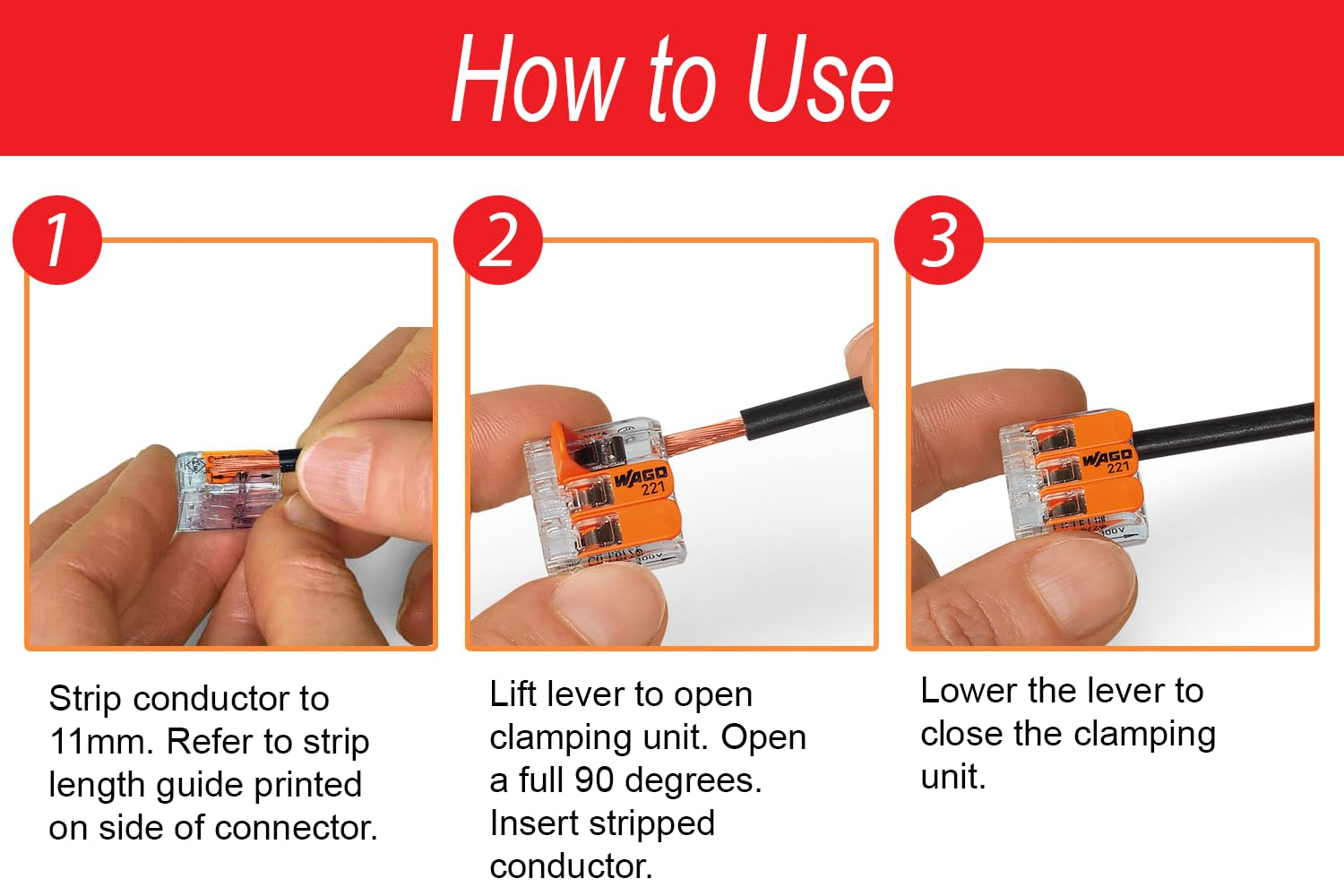

How to Use
| Conductor size 221-41x | 24-12 AWG solid/stranded |
| Conductor size 221-2401 | 20-12 AWG solid, 18-12 AWG stranded |
| Rated Current | 20A |
| Rated Voltage | 600 V max. for building wire; 1000 V max. for signs or luminaires |
| Temperature | Insulating material temperature rating of 105° C max. |
| Supported conductor material | Copper (Cu) |

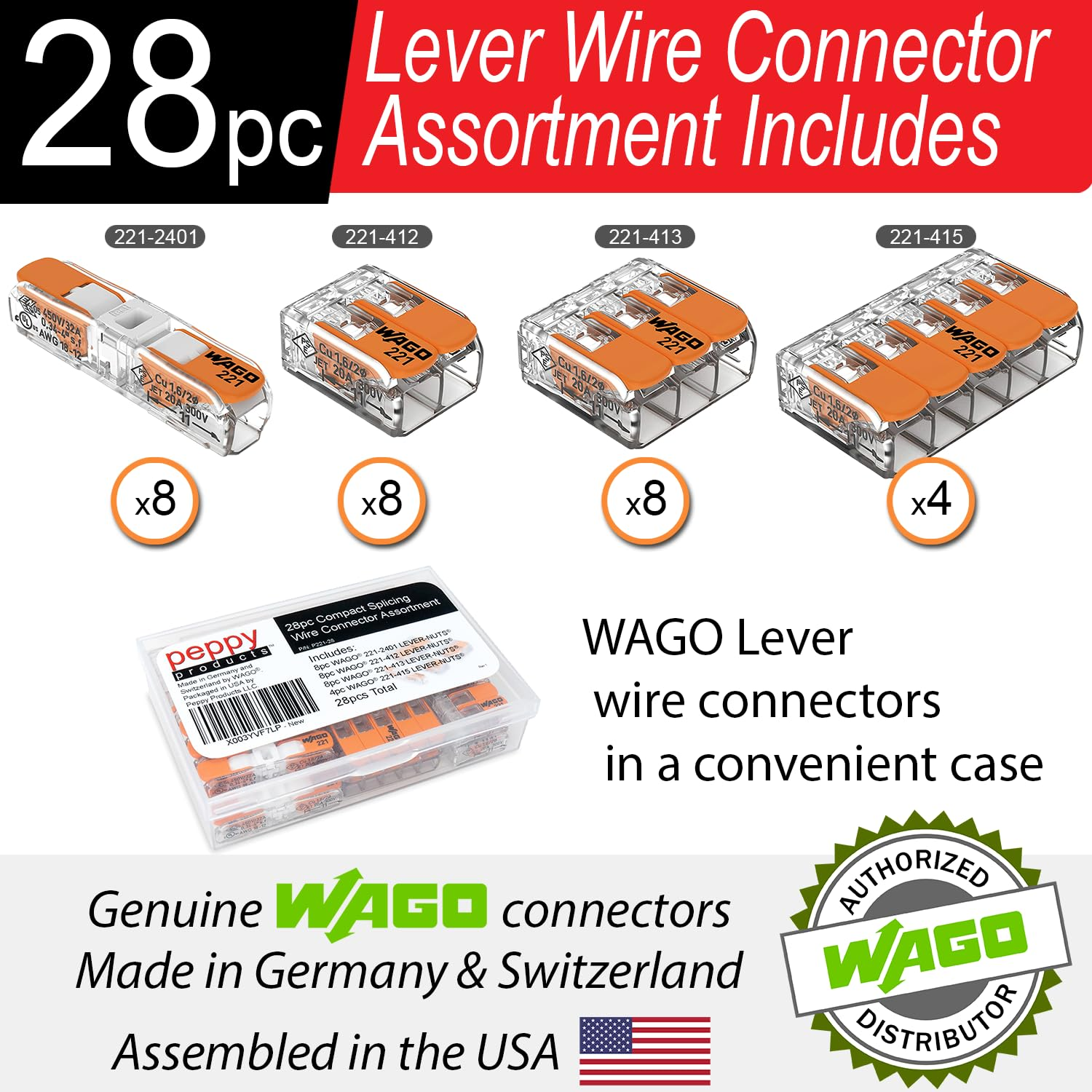

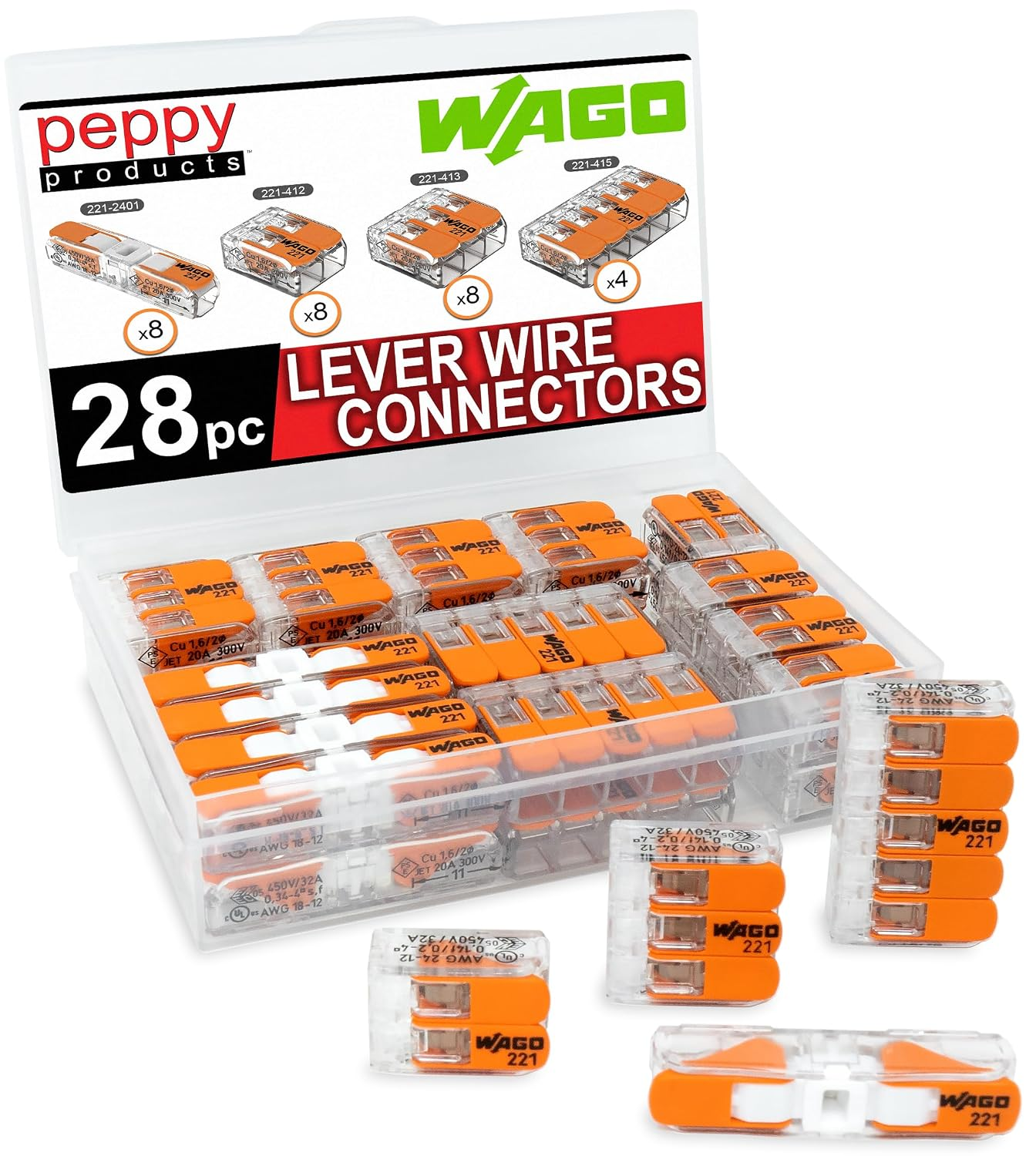

What’s Included in the Case?
WAGO 221-2401 Inline Connectors
8 pieces
- 2-port inline splicing connector
- 20-12 AWG solid
- 18-12 AWG stranded
WAGO 221-412 Connectors
8 pieces
- 2-port splicing connector
- 24-12 AWG
WAGO 221-413 Connectors
8 pieces
- 3-port splicing connector
- 24-12 AWG
WAGO 221-415 Connectors
4 pieces
- 5-port splicing connector
- 24-12 AWG
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
|
| Customer Reviews |
4.8 out of 5 stars 3,199
|
4.8 out of 5 stars 3,199
|
4.8 out of 5 stars 1,198
|
4.8 out of 5 stars 3,337
|
4.9 out of 5 stars 1,634
|
|---|---|---|---|---|---|

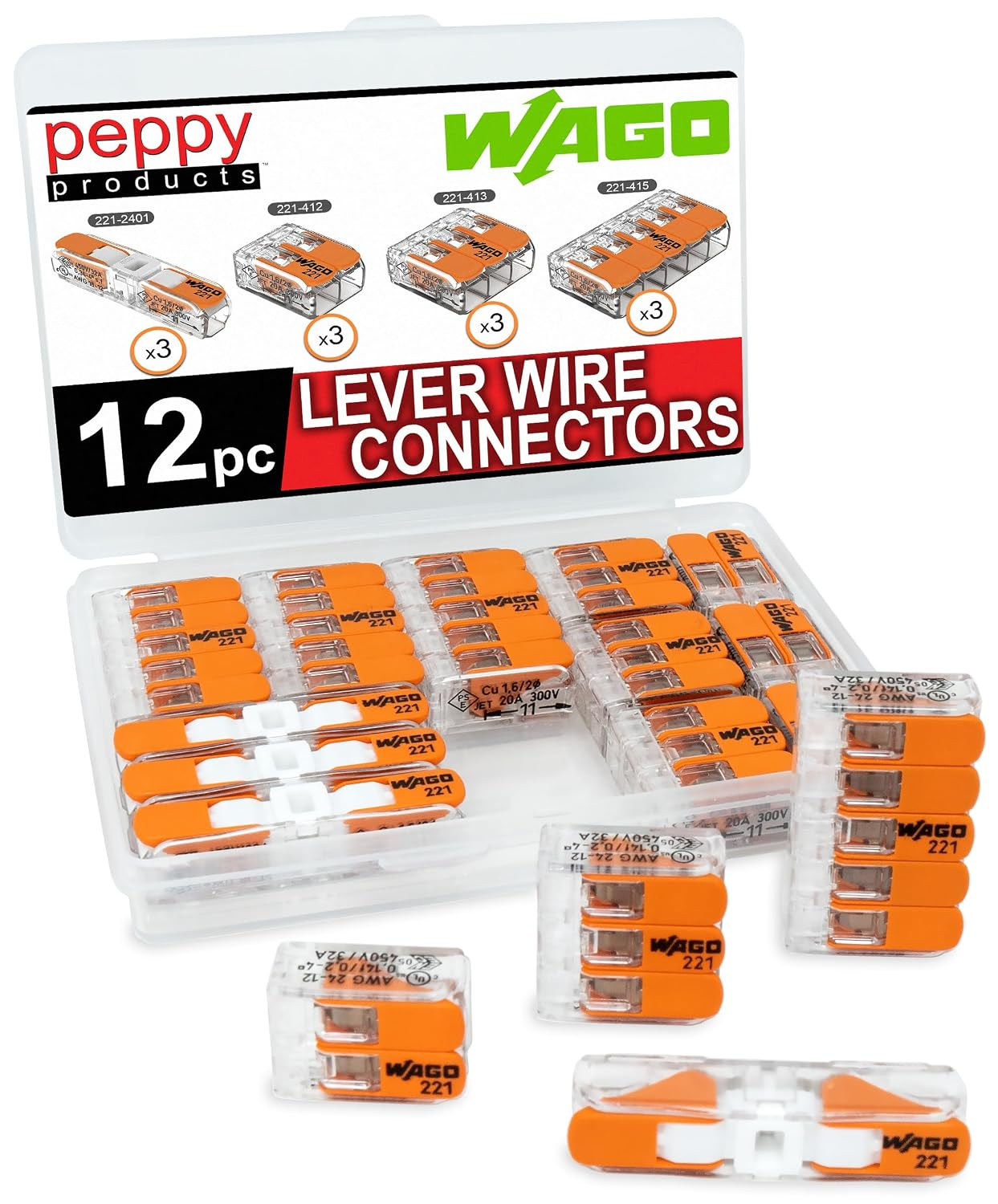

| Price | $20.95$20.95 | $12.45$12.45 | $25.95$25.95 | $40.95$40.95 | $45.95$45.95 |
| 221-2401 | 8 pcs | 3 pcs | 10 pcs | – no data | 25 pcs |
| 221-412 | 8 pcs | 3 pcs | 10 pcs | 34 pcs | 25 pcs |
| 221-413 | 8 pcs | 3 pcs | 10 pcs | 26 pcs | 25 pcs |
| 221-415 | 4 pcs | 3 pcs | 5 pcs | 18 pcs | 15 pcs |
| Total Pieces | 28 | 12 | 35 | 78 | 90 |
